Overview

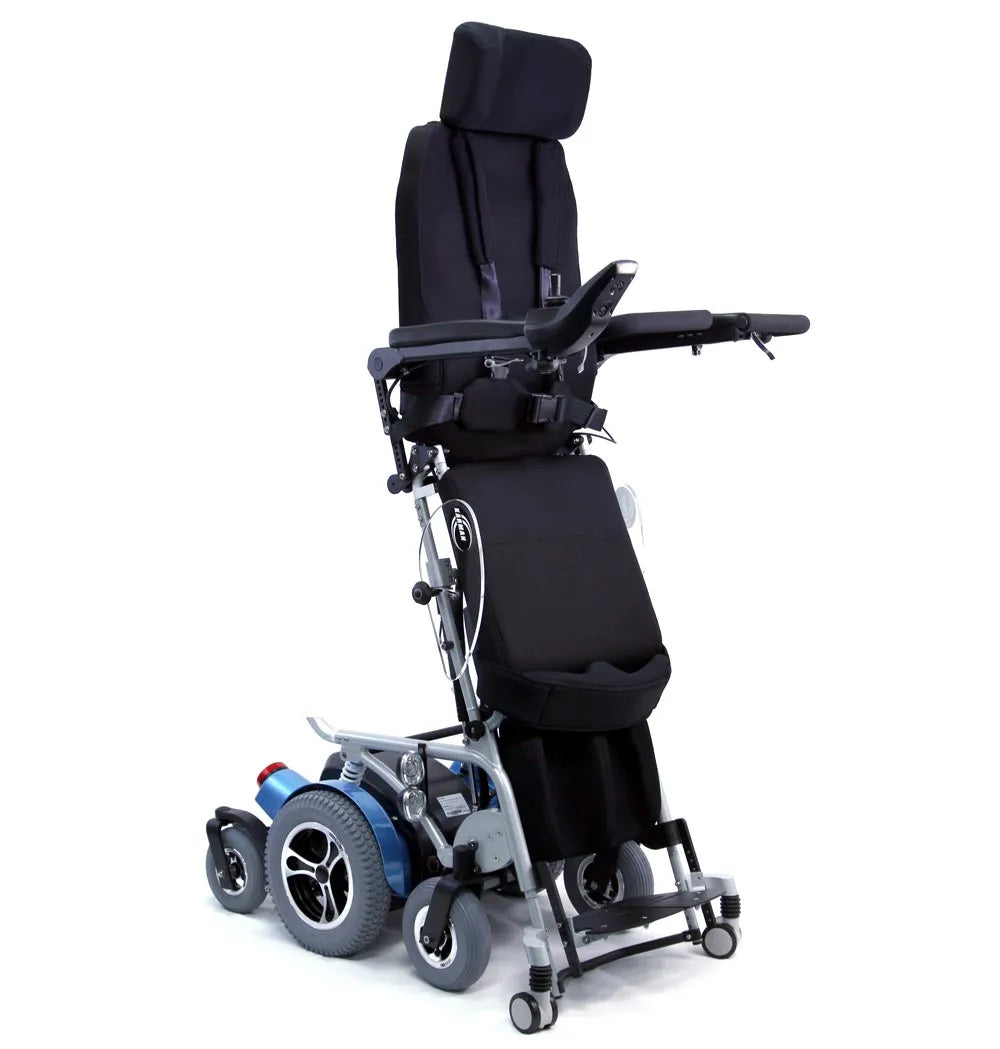

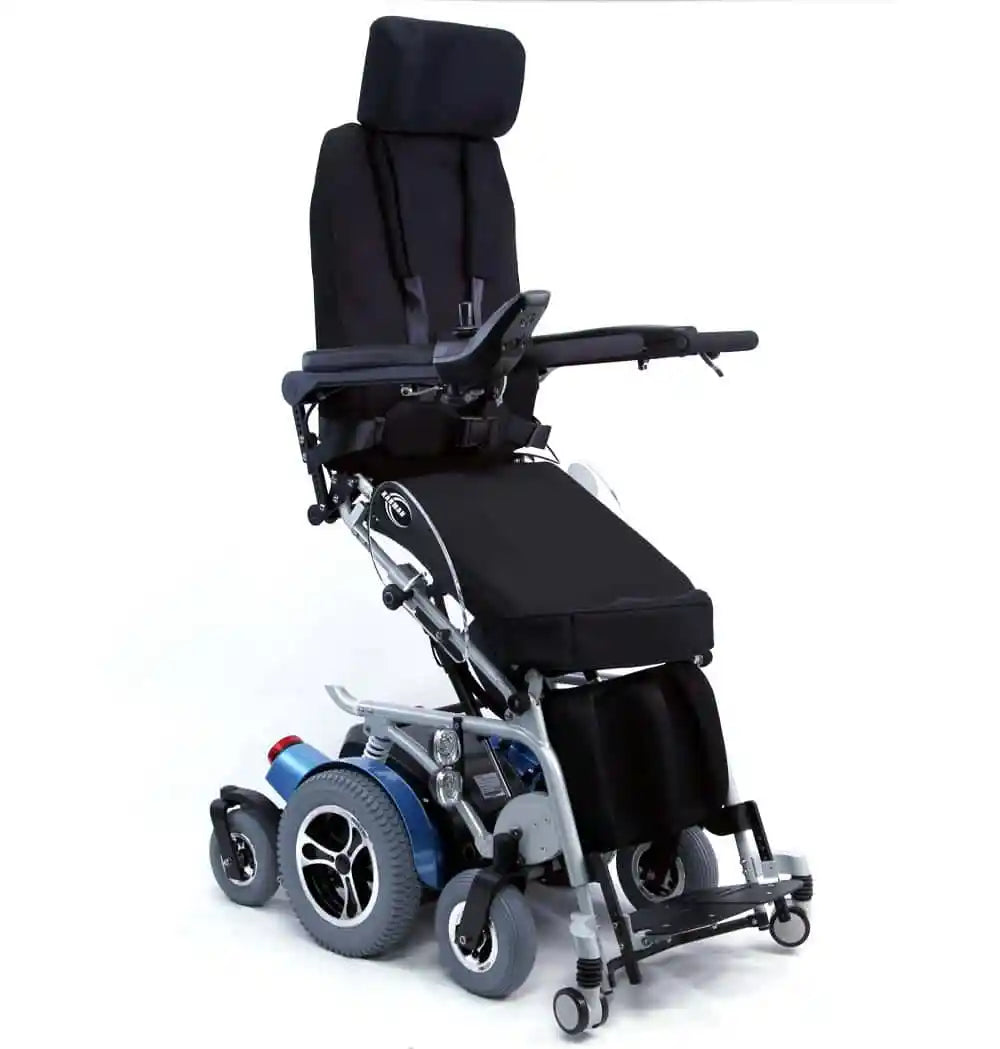

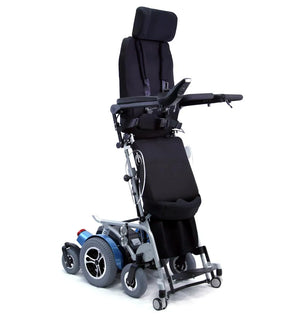

The Karman XO-505 is an 18" power standing wheelchair featuring a full sit-to-stand function, power drive, power recline, and power tilt. Built on a 6061 T-6 aircraft-grade aluminum frame with mid-wheel drive for a minimal turning radius. Suitable for indoor and outdoor use. Available with an optional food tray add-on.
Configuration Options
- Seat width: 18"
- Seat depth: 18", 19", or 20"
- Joystick position: right-hand or left-hand
- Optional food tray add-on available
Key Features

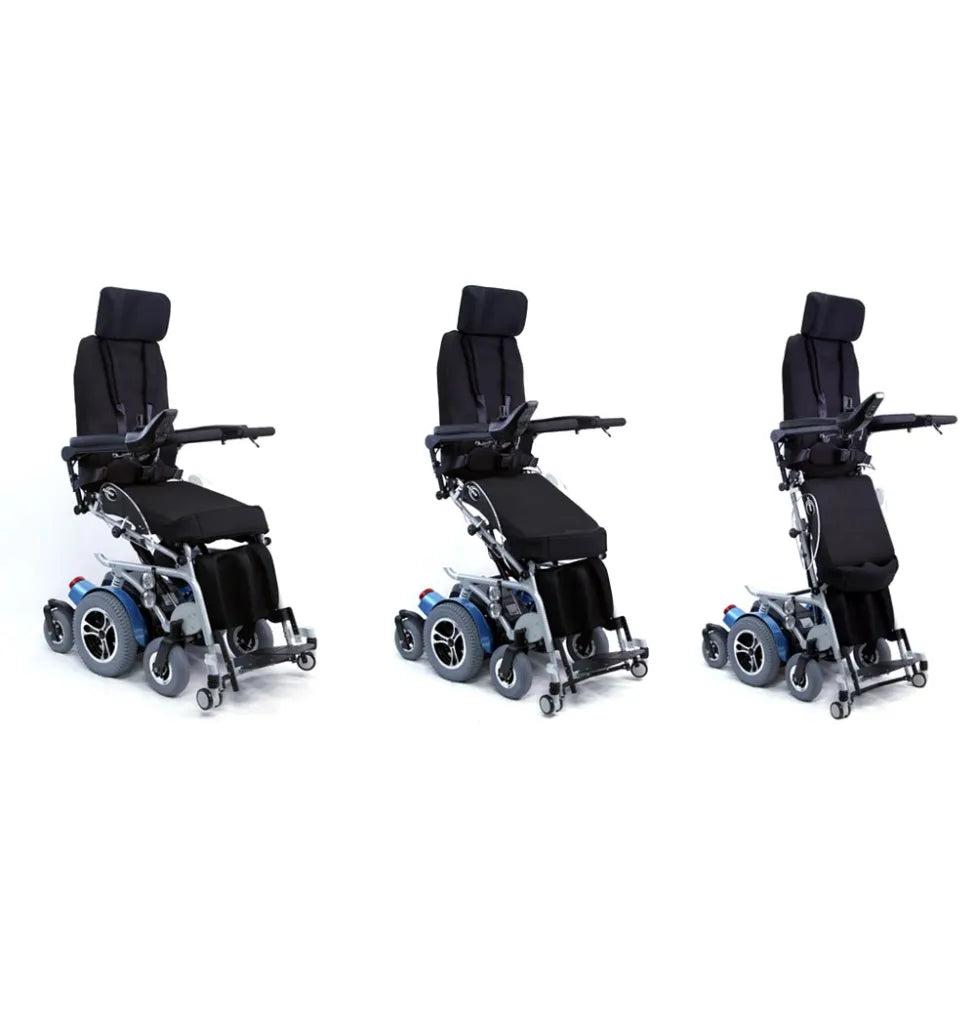

- Power Sit-to-Stand Function, Motorized sit-to-stand via joystick control
- Power Drive — Mid-wheel drive with minimal turning radius

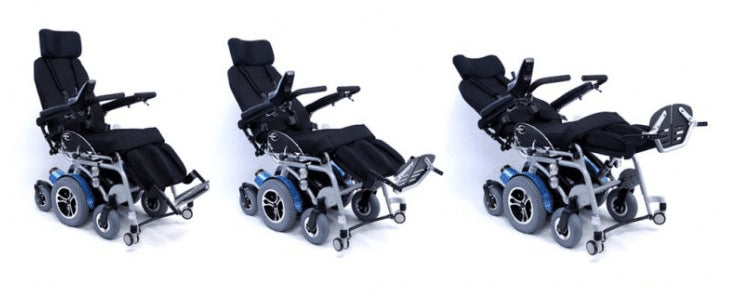

- Power Recline & Tilt — Joystick-controlled recline and tilt functions

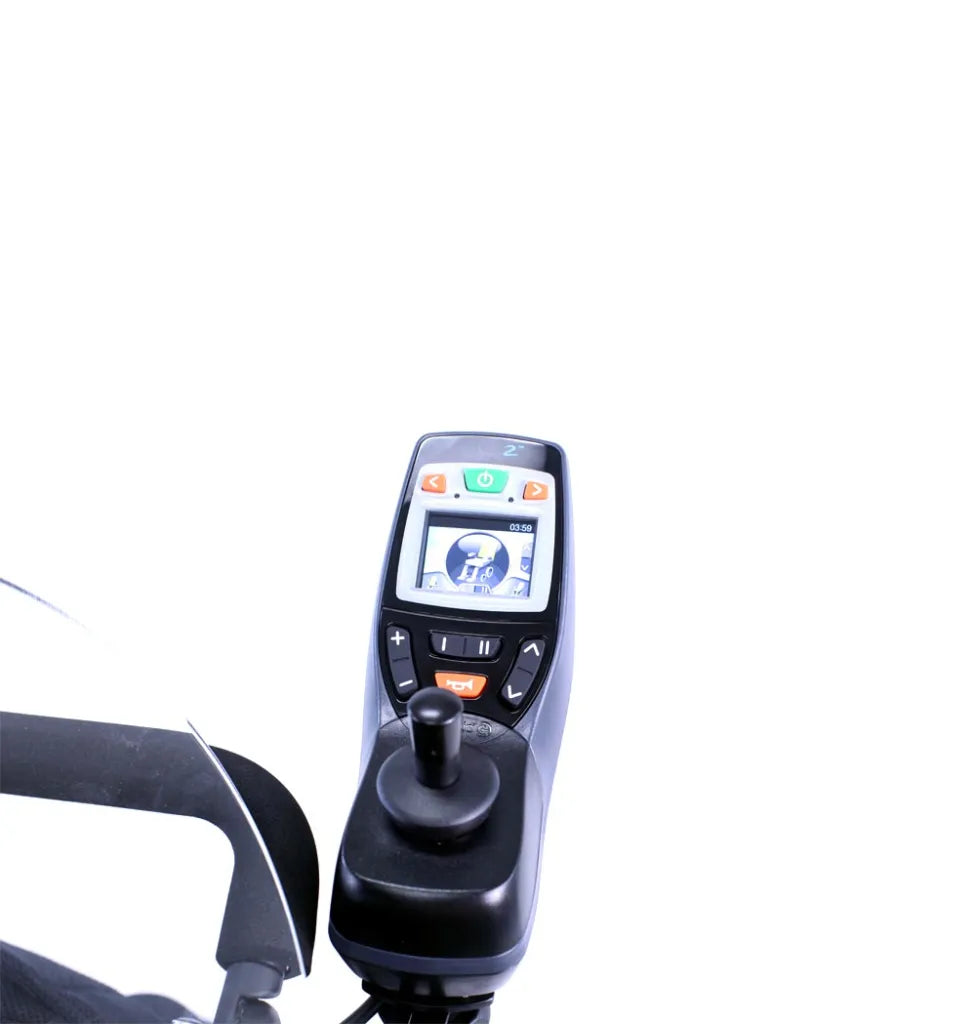

- LCD Control Display — Full-control LCD with joystick for drive and stand modes
- Powered Hydraulic System — Built-in brake safety features
- H-Style Chest Harness — Anti-tip safety restraint for standing position
- Adjustable Seating — Seat depth, backrest height, armrest height, footrest height and angle all adjustable
- Flip-Back Armrests — For easier transfers
- Fold-Up Legrests — Full leg rest support cushion included
- Extendable Arm & Hand Support Bars — Both sides
- Memory Foam Cushions — Included
- Battery Range — Approximately 25 miles per charge

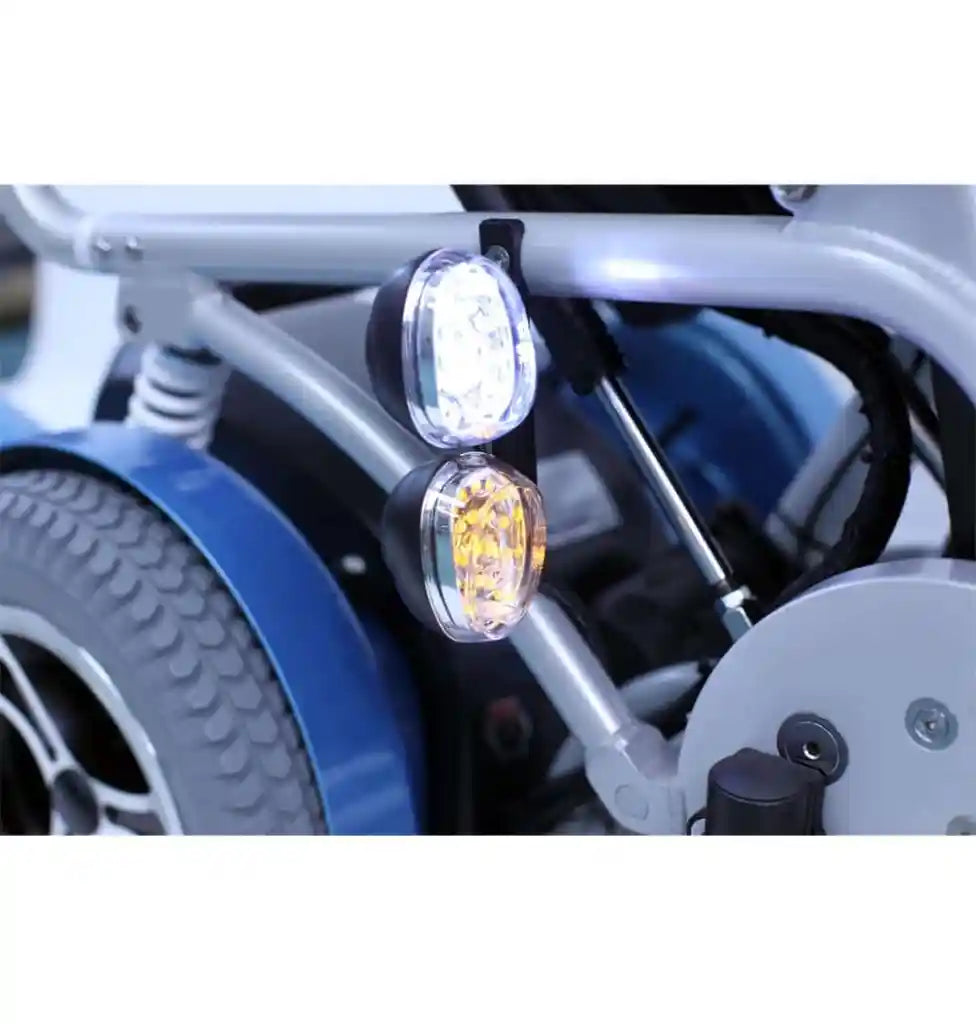

- Dual Front LED Headlights — Luxury model

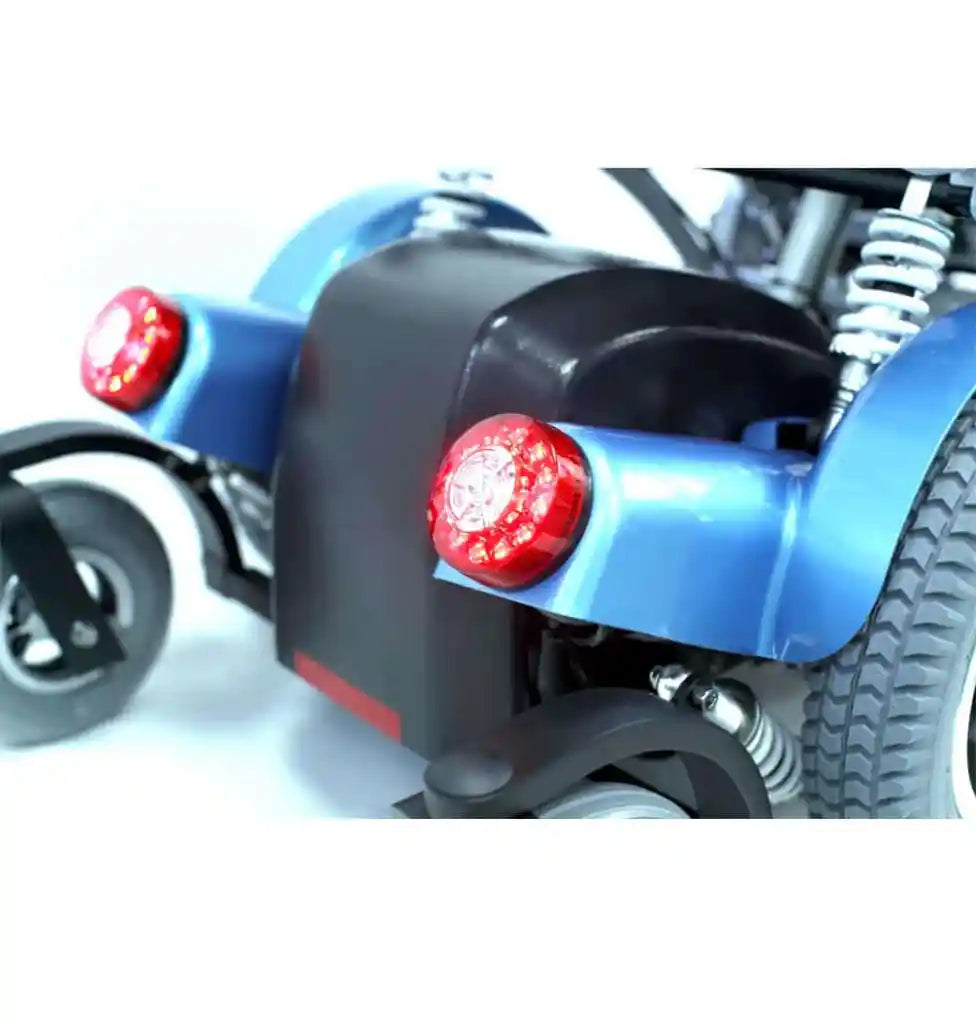

- Rear Dual Headlights with Flashing Alert — Luxury model
- USB Support — Optional add-on
- Rear Caster Wheels
Specifications
| Specification | Details |
|---|---|
| Frame Material | 6061 T-6 Aircraft-grade Aluminum |
| Seat Width | 18" |
| Seat Depth | 18" / 19" / 20" |
| Seat Height | 23" |
| Back Height | 25" |
| Armrest Height | 8.5" |
| Overall Height (with headrest) | 56.5" |
| Overall Height (without headrest) | 46.6" |
| Overall Width | 28" |
| Overall Length | 45" |
| Overall Weight | 298 lbs |
| Weight Capacity | 250 lbs |
| Ground Clearance | 2" |
| Turning Radius | 25 degrees |
| Battery Range | ~25 miles per charge |
| Drive Type | Mid-wheel drive |
| Armrest Type | Flip-Back |
| Legrest Type | Fold-Up |
| Shipping Dimensions | 48" L × 40" H × 52" W |
| UPC | 859706005983 |
Warranty & Returns
- See store policy for warranty and return terms
- Karman Healthcare reserves the right to change specifications and design without notice
- Shipping Weight: Product Weight (Assembled):** 298 lbs (Chair) + 68 lbs (Batteries) = 366 lbs
Total Shipping Weight (Gross): ~400 lbs (Includes heavy-duty protective wooden pallet and crating)
FAQ
Can I choose the joystick side?
Yes. Right-hand and left-hand joystick configurations are available at checkout.
Is the food tray included?
No. The food tray is an optional add-on available as a bundle or separately.
What is the battery range?
Approximately 25 miles per charge under normal use conditions.
Is this suitable for outdoor use?
Yes. Mid-wheel drive and suspension make it suitable for both indoor and outdoor terrain.
