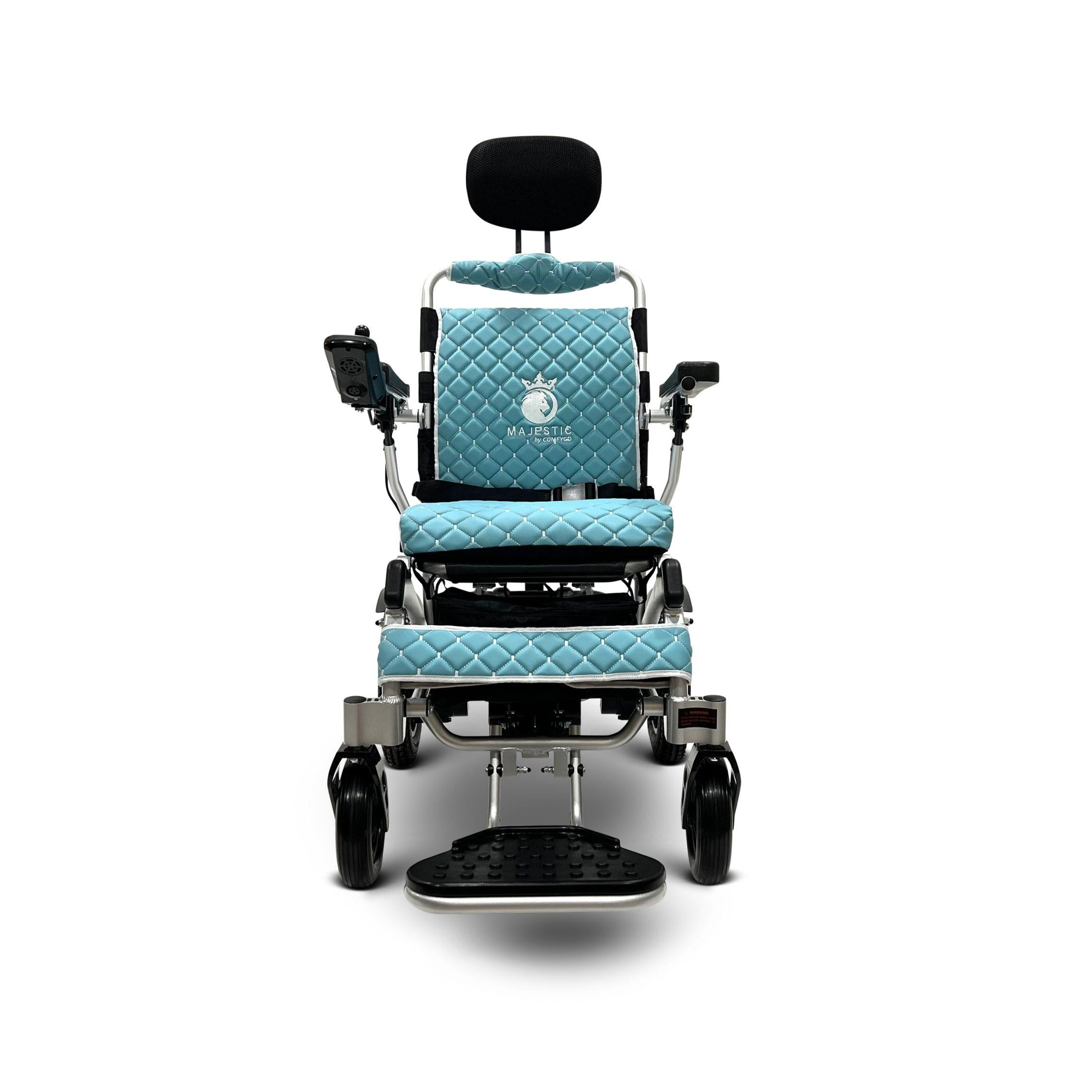

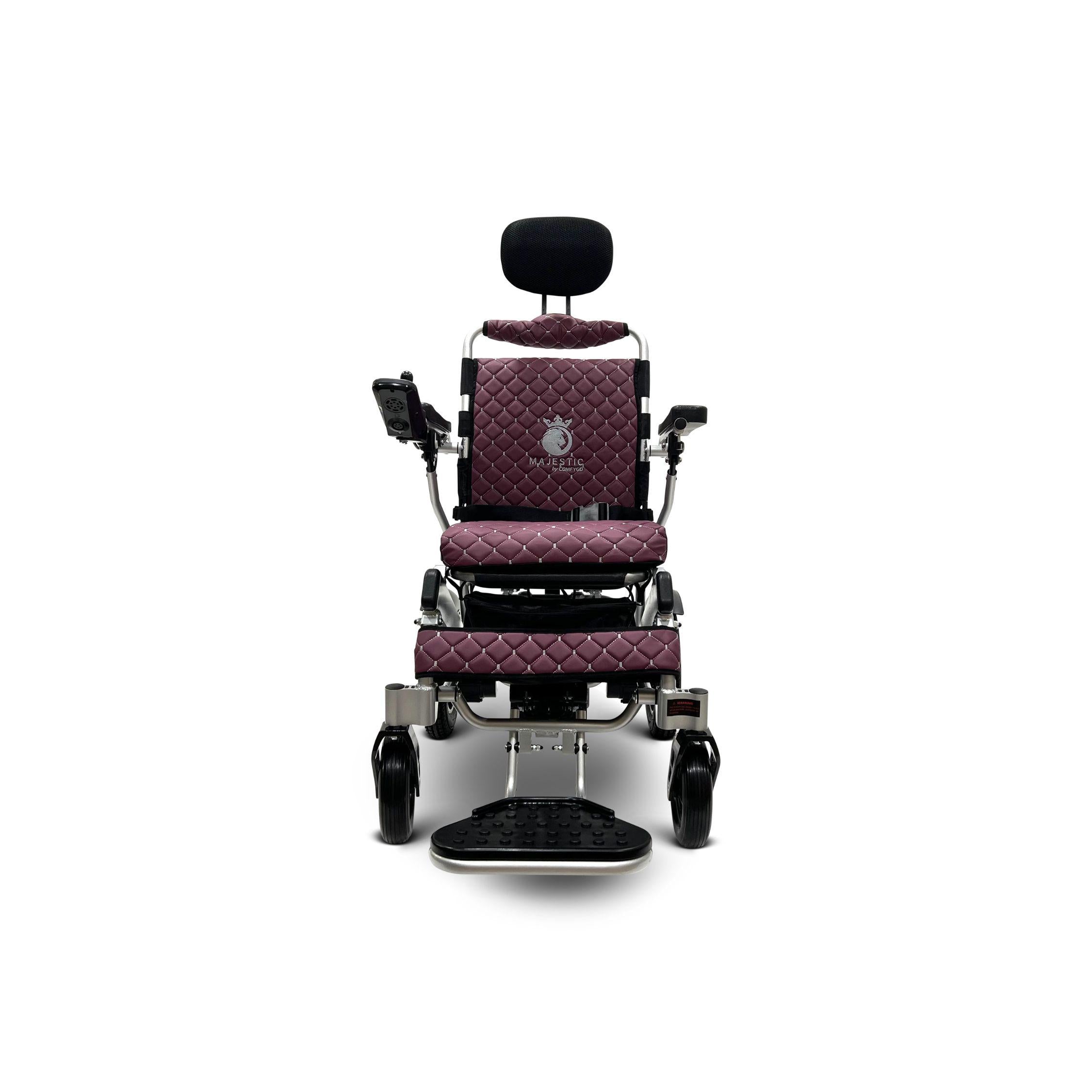

IQ-9000 Electric Wheelchair Technical Specifications

Battery and Charger

Battery Options: Two standard 7.5AH lithium-ion batteries with quick-release function.

Airline and cruise approved for seamless travel

Charging Time: 6 to 8 hours

Charging Details: AC 100 – 240 Volt, 50 Hertz, 1.5 – 5 amperes

Charging: Can be charged with a regular home outlet, either installed in the wheelchair or independently

Standard Charger: 24V 2A charger included

Optional Charger: 24V 3A charger recommended for quicker charging (sold separately)

Range
Driving Range: Up to 19 miles with two 24V 7.5AH batteries

Factors Affecting Range: Driving habits, temperature, weather, loading weight, road conditions, etc.

Motors
Motor Power: Dual 250W brushless silent motors (500W total)

Motor Torque: 1.1Nm, capable of climbing inclines up to 10 degrees

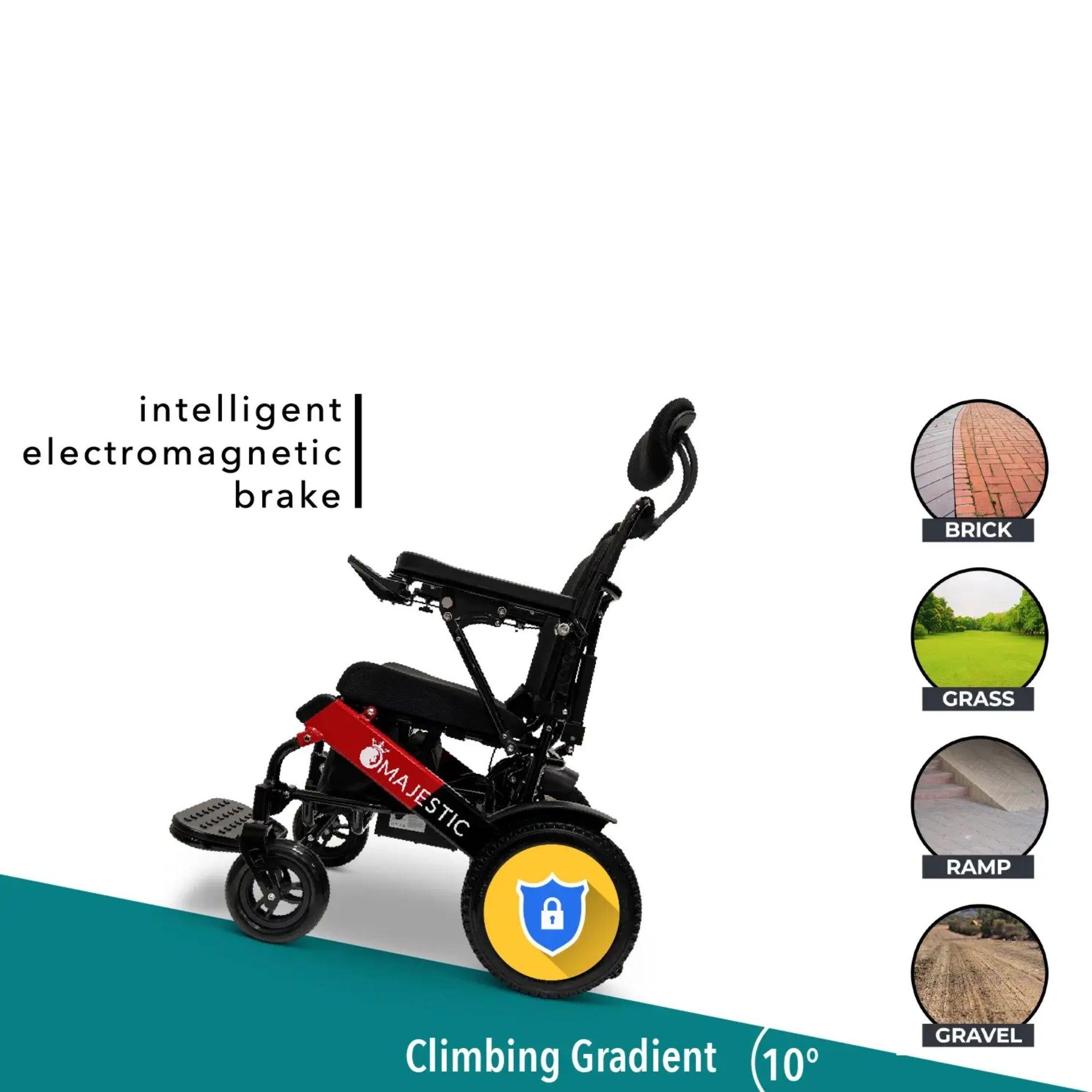

Intelligent Electromagnetic Brakes
Features: Improved safety, smoother braking, reduced wear and tear

Benefits: Highly responsive, precision control, less maintenance, longer lifespan, prevents rolling on slopes

Travel Friendly
Battery That's Airplane and Cruise or Rail Approved! 7.5AH(180WH) lithium-ion battery, approved by most major airlines and cruise lines

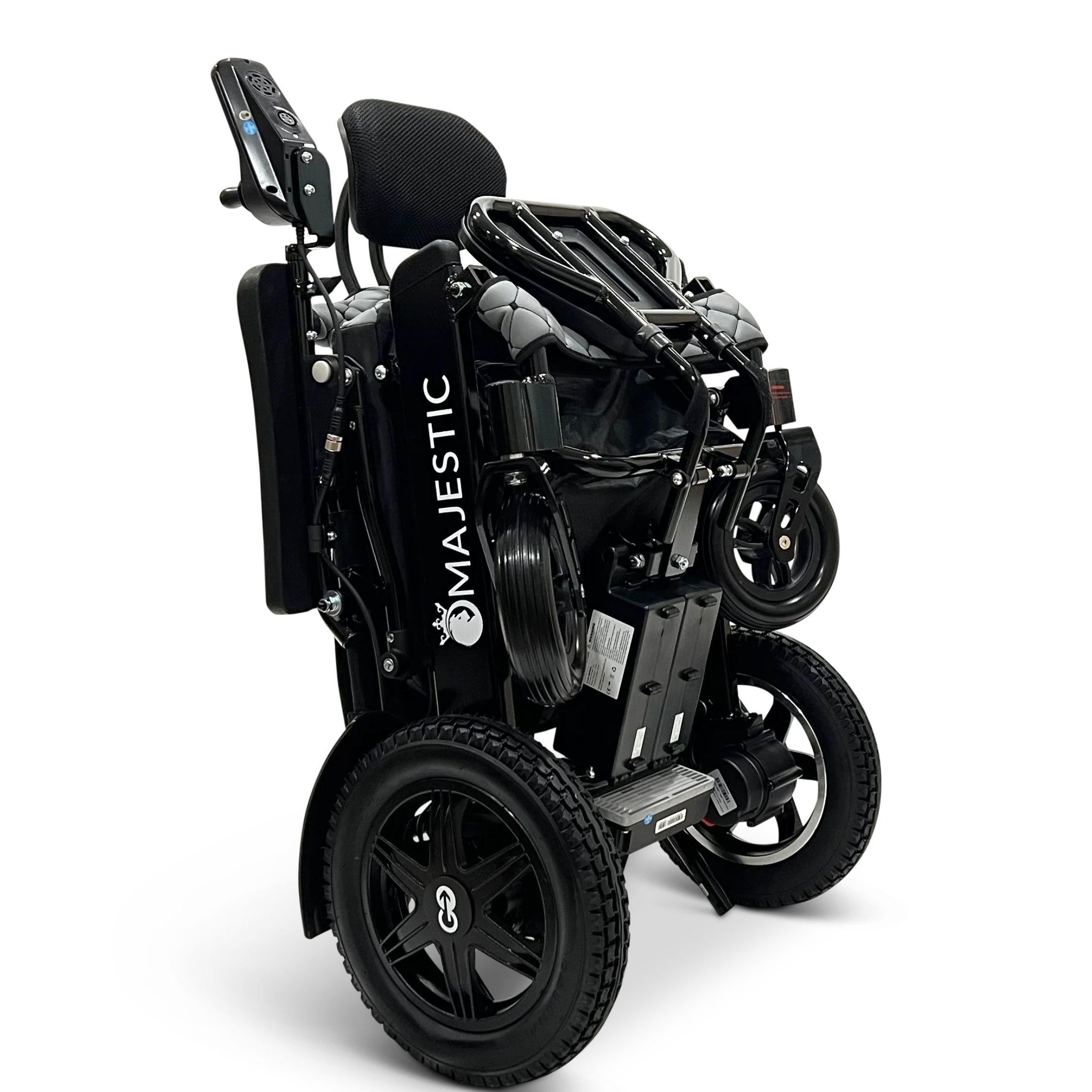

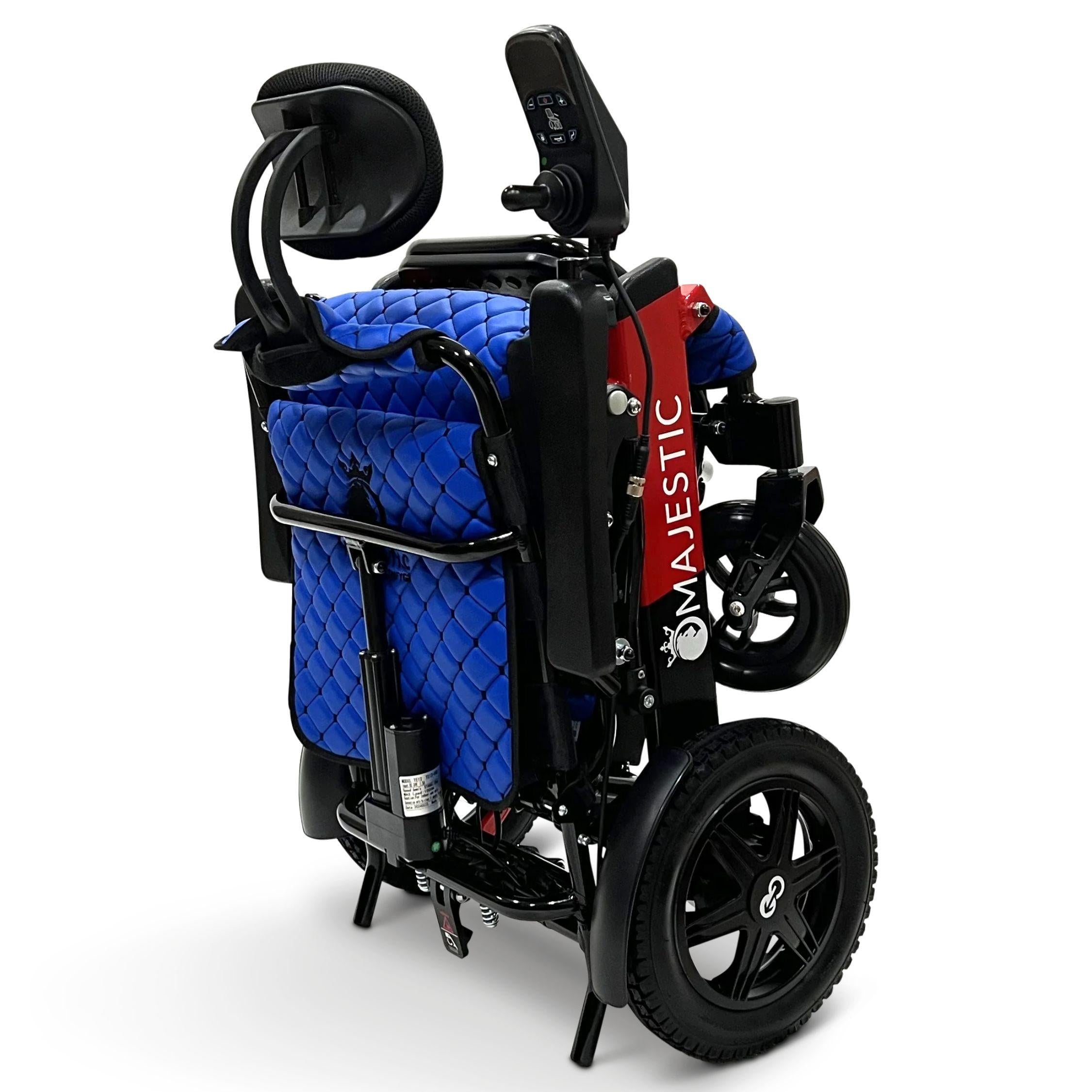

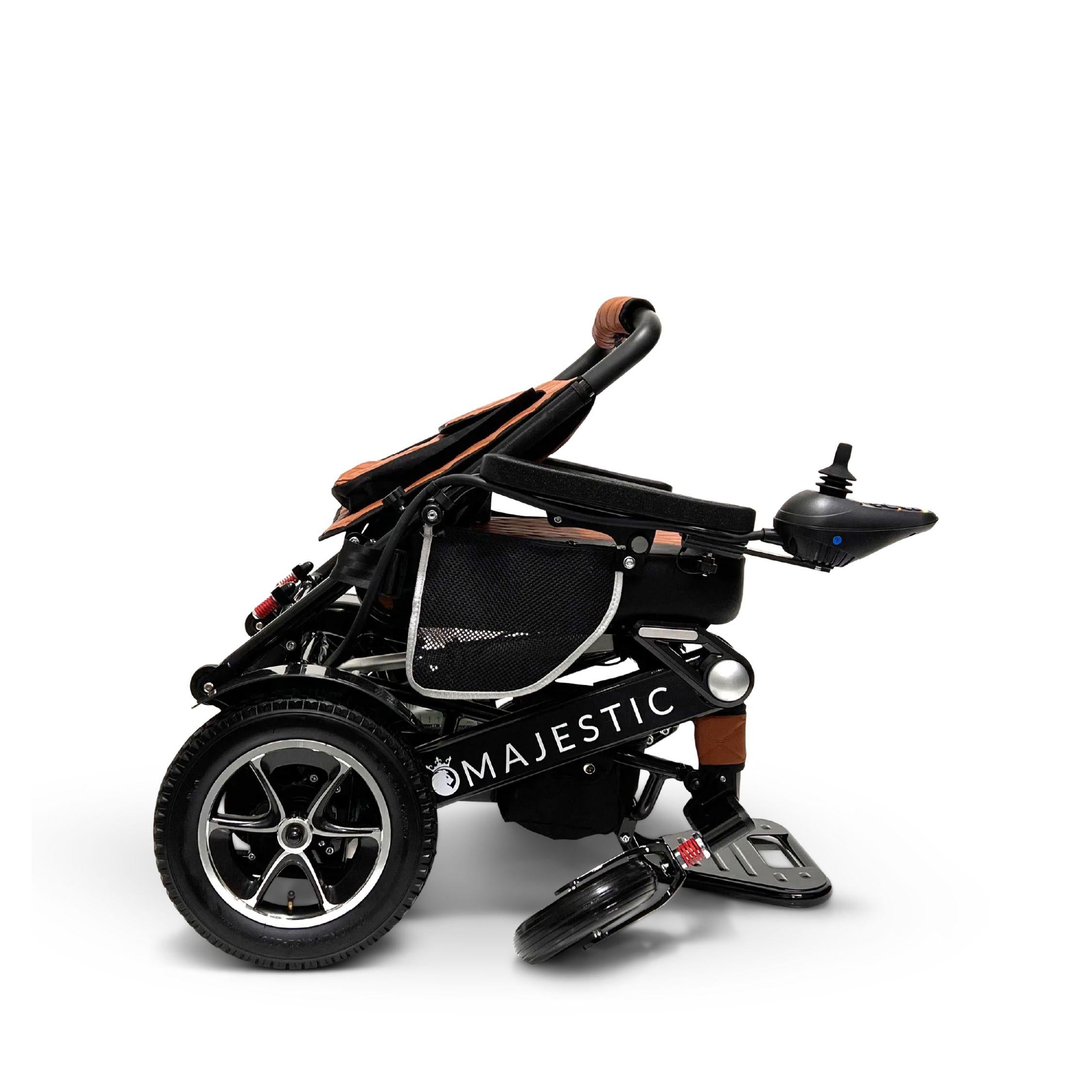

Foldable: Folding design for easy travel.

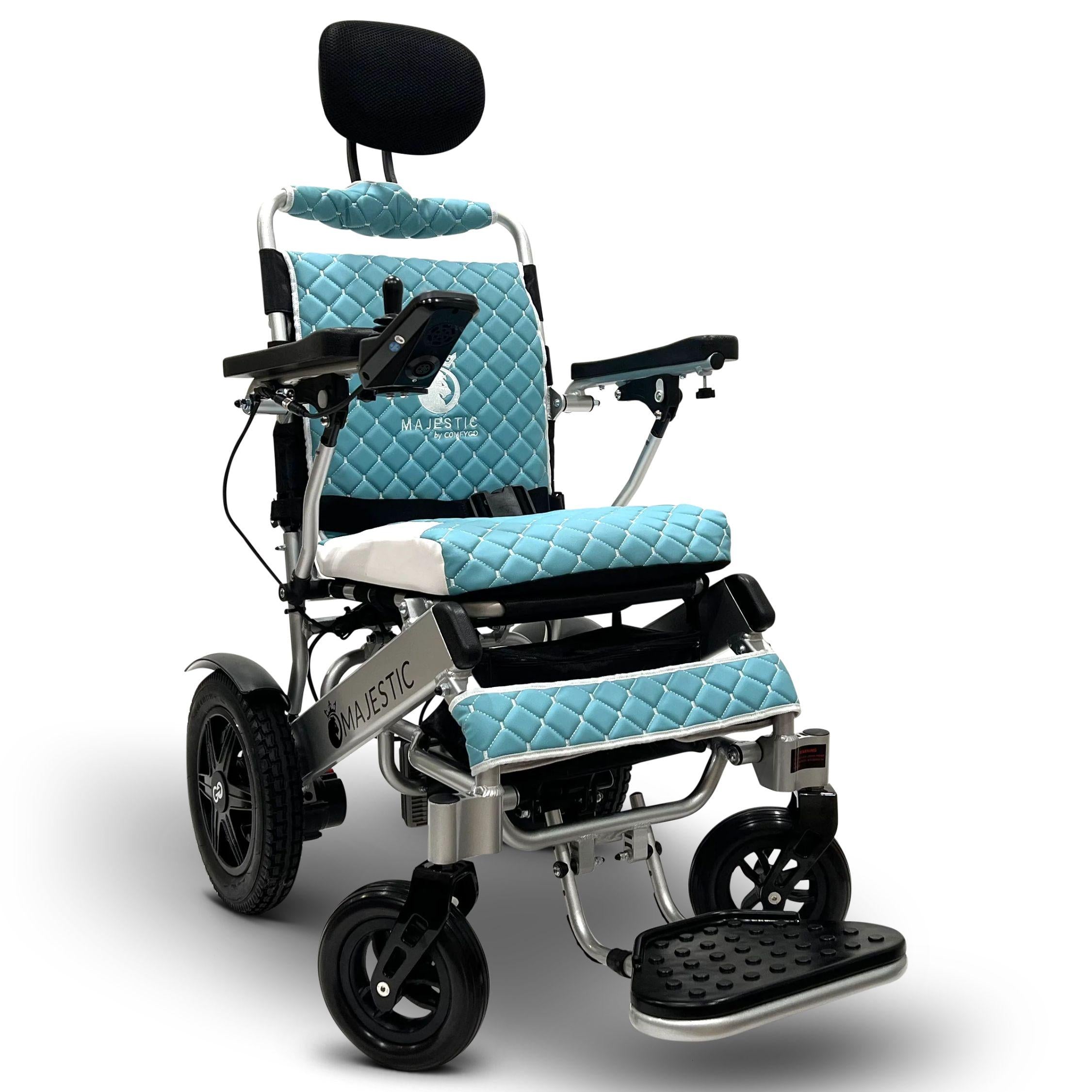

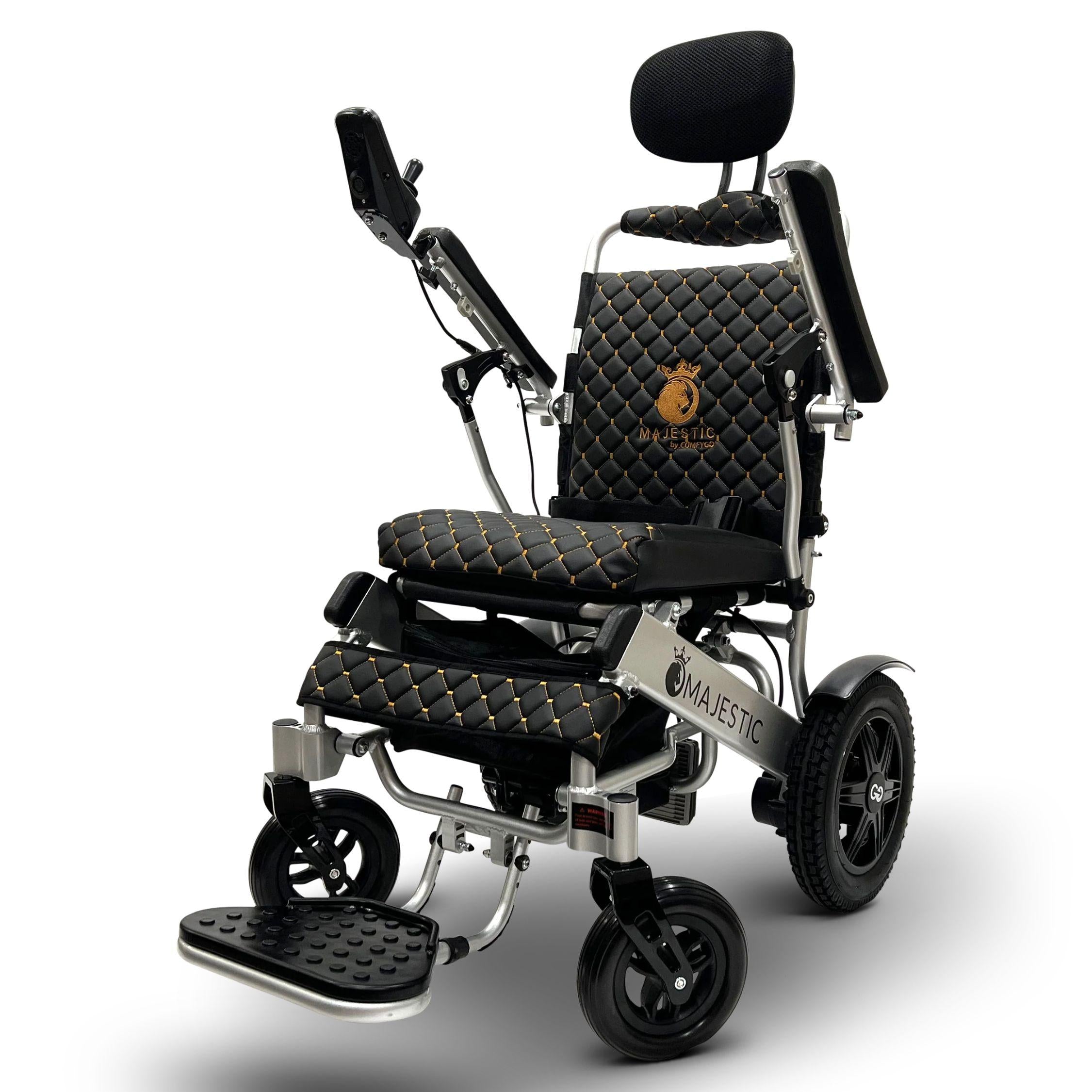

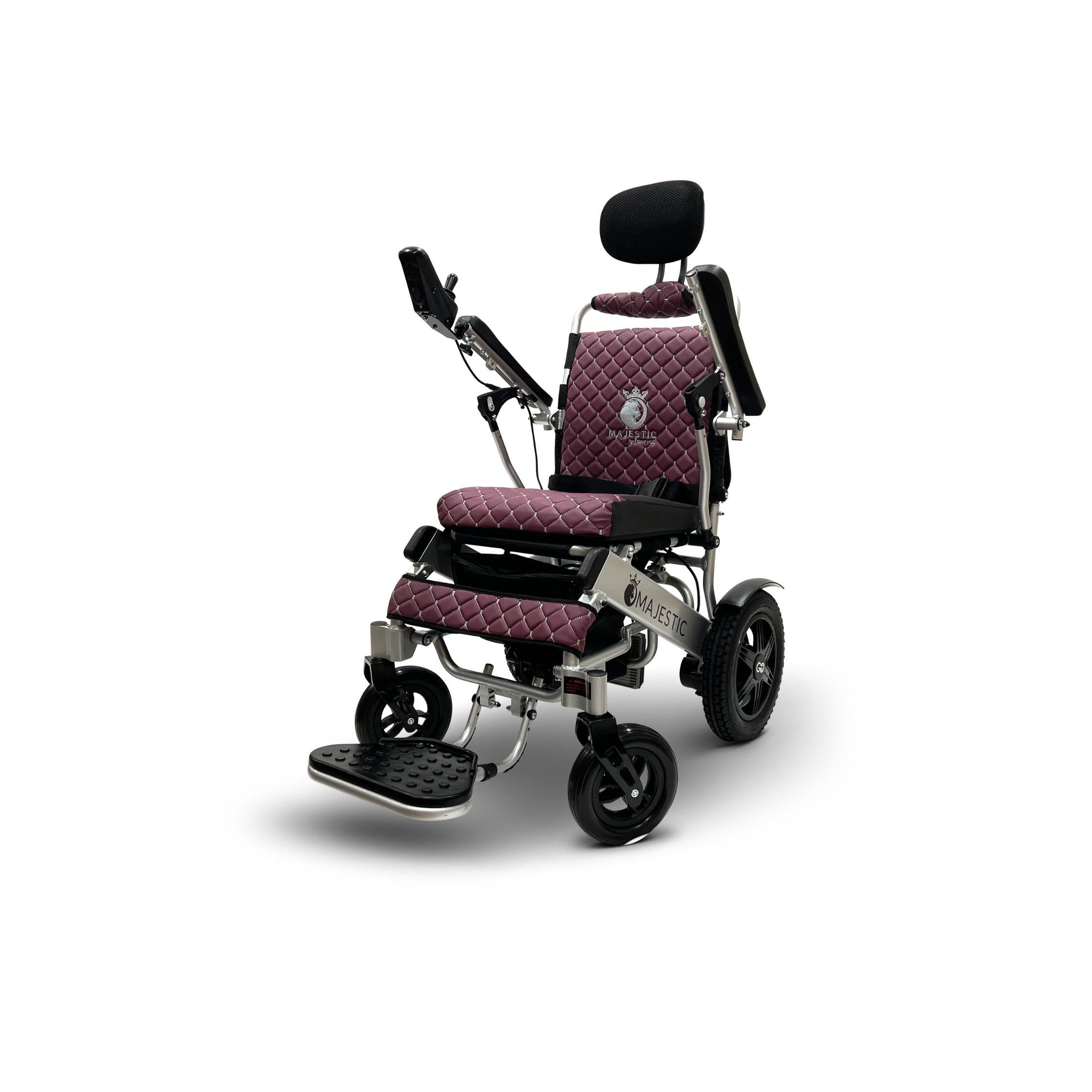

Reclining

Feature: Optional auto reclining, adjustable from 10° to 55° with a joystick or remote control operation

Safety: Use only when stationary to avoid tipping and injuries

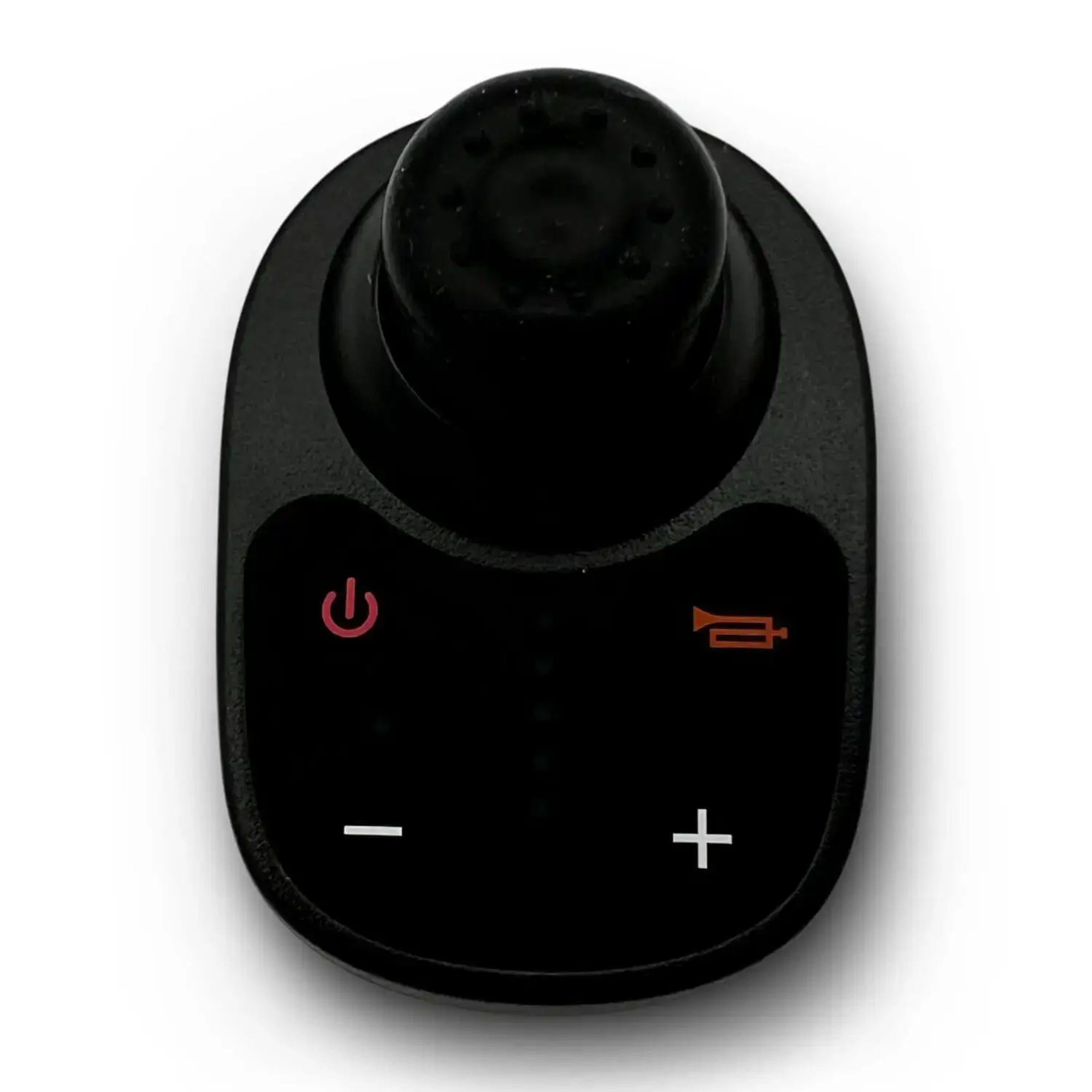

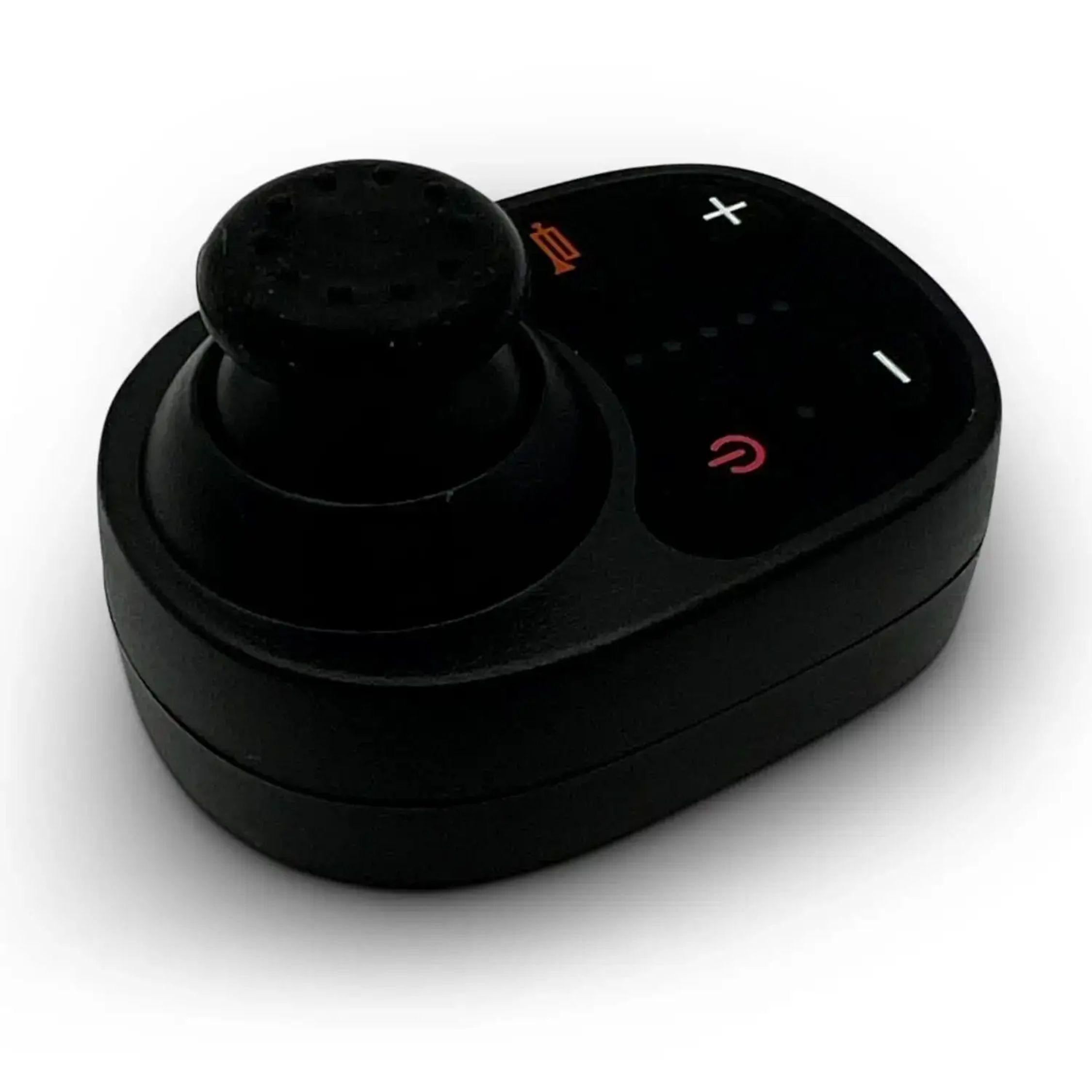

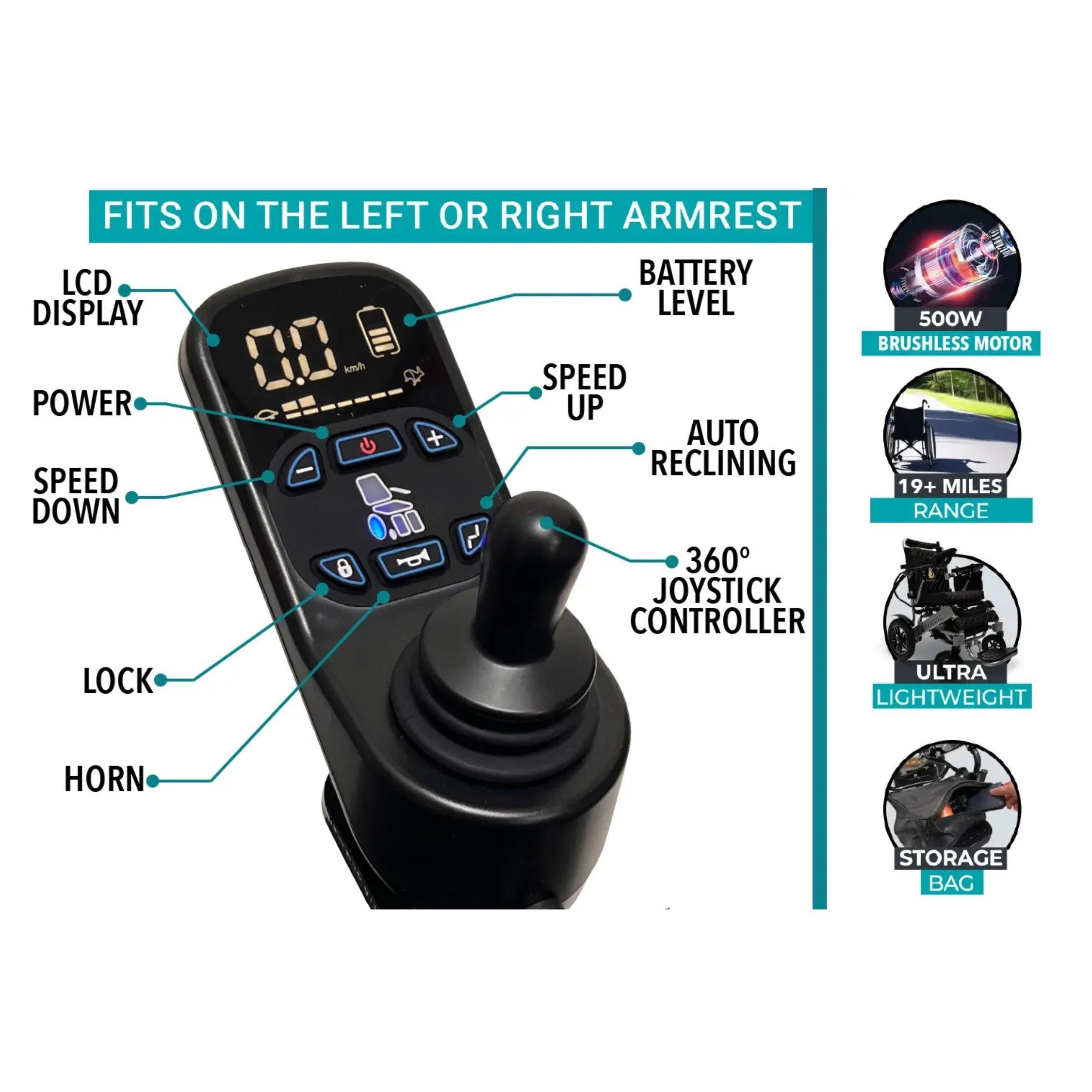

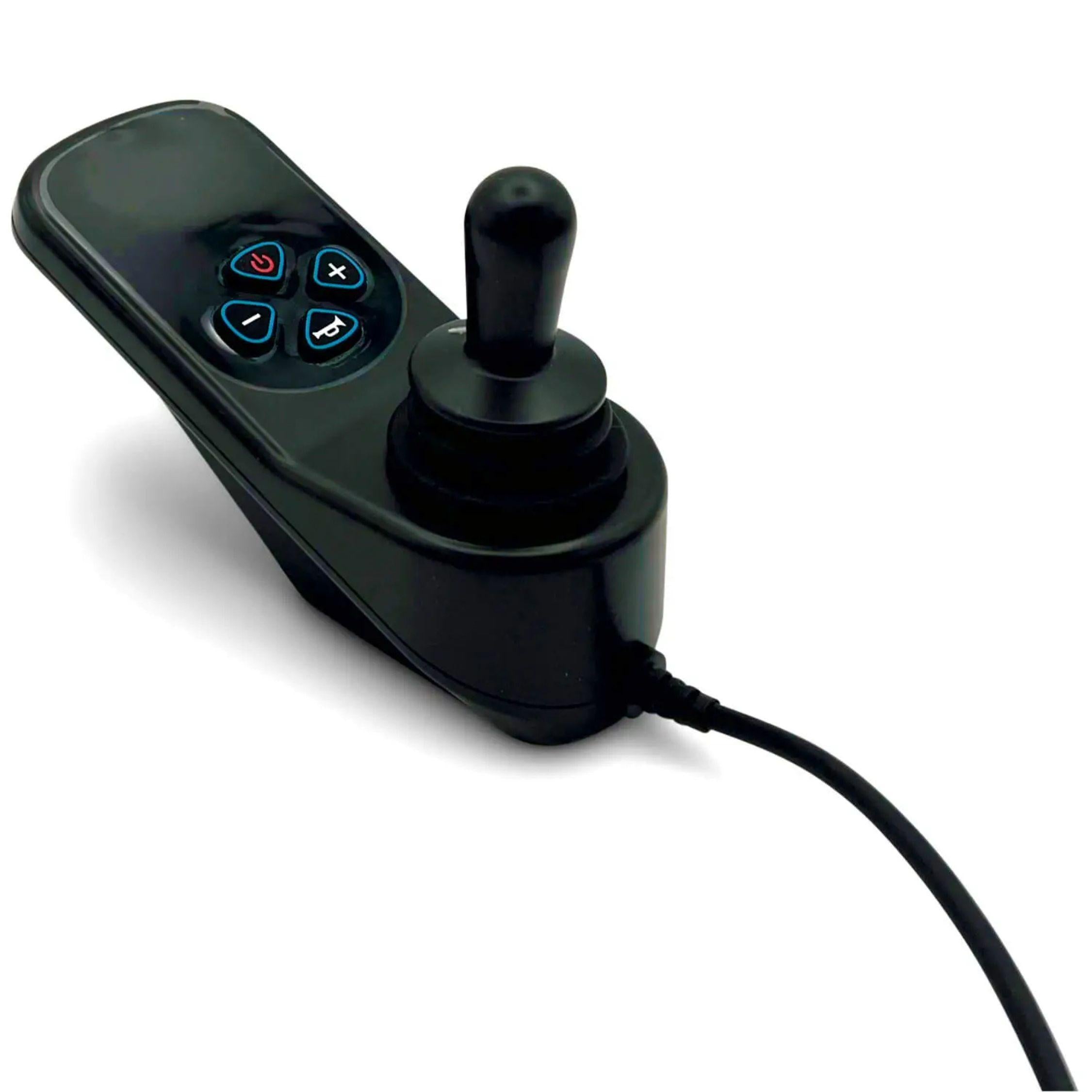

Controller (Joystick)
Type: Digital joystick controller with LCD

Functions: Power on/off, speed selection, horn, battery level display, 360-degree joystick control, recline and upright buttons if applicable

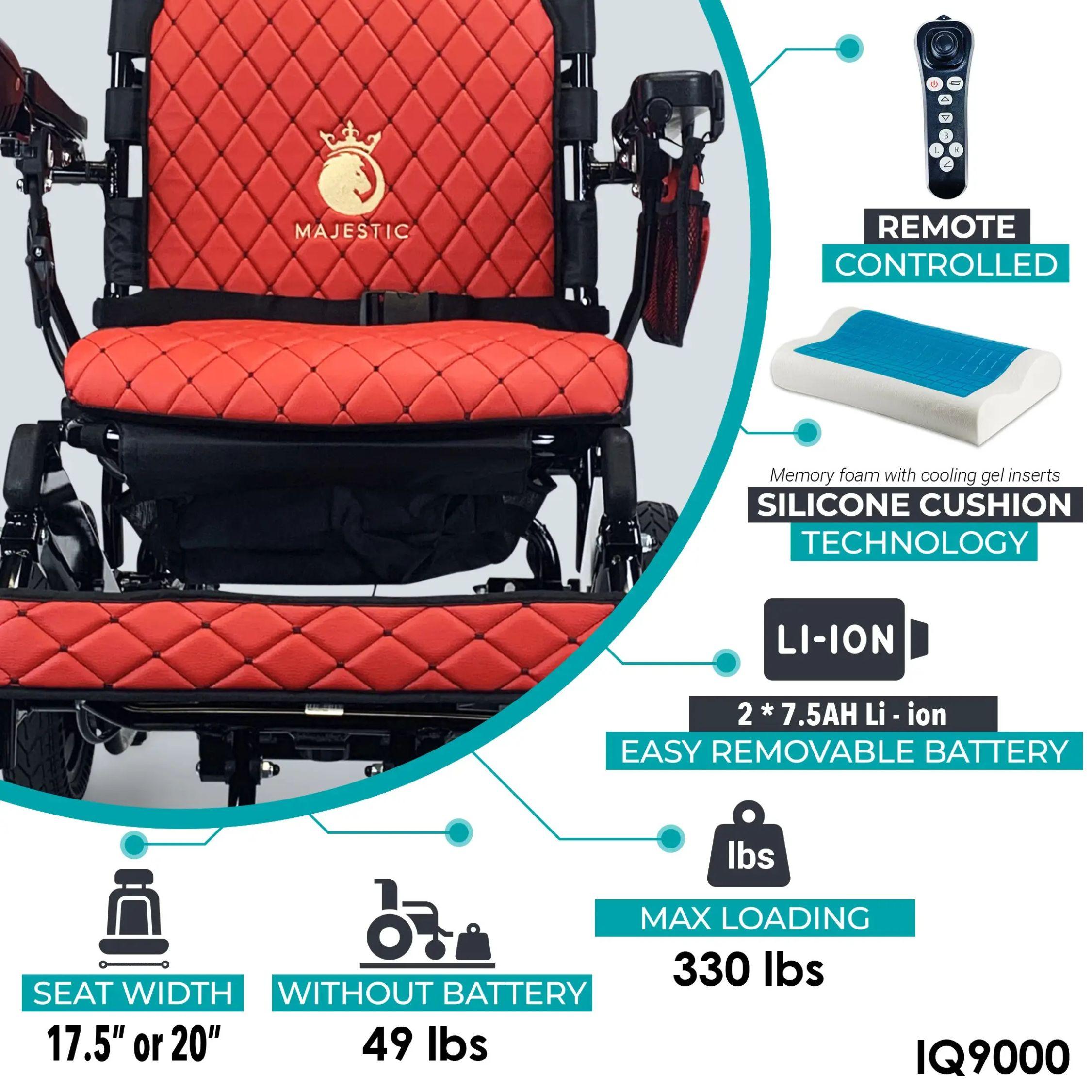

Cushion & Backrest
Comfort: Memory foam cushion w/ cooling gel inserts

Options: Leather cushion and backrest for easy cleanup

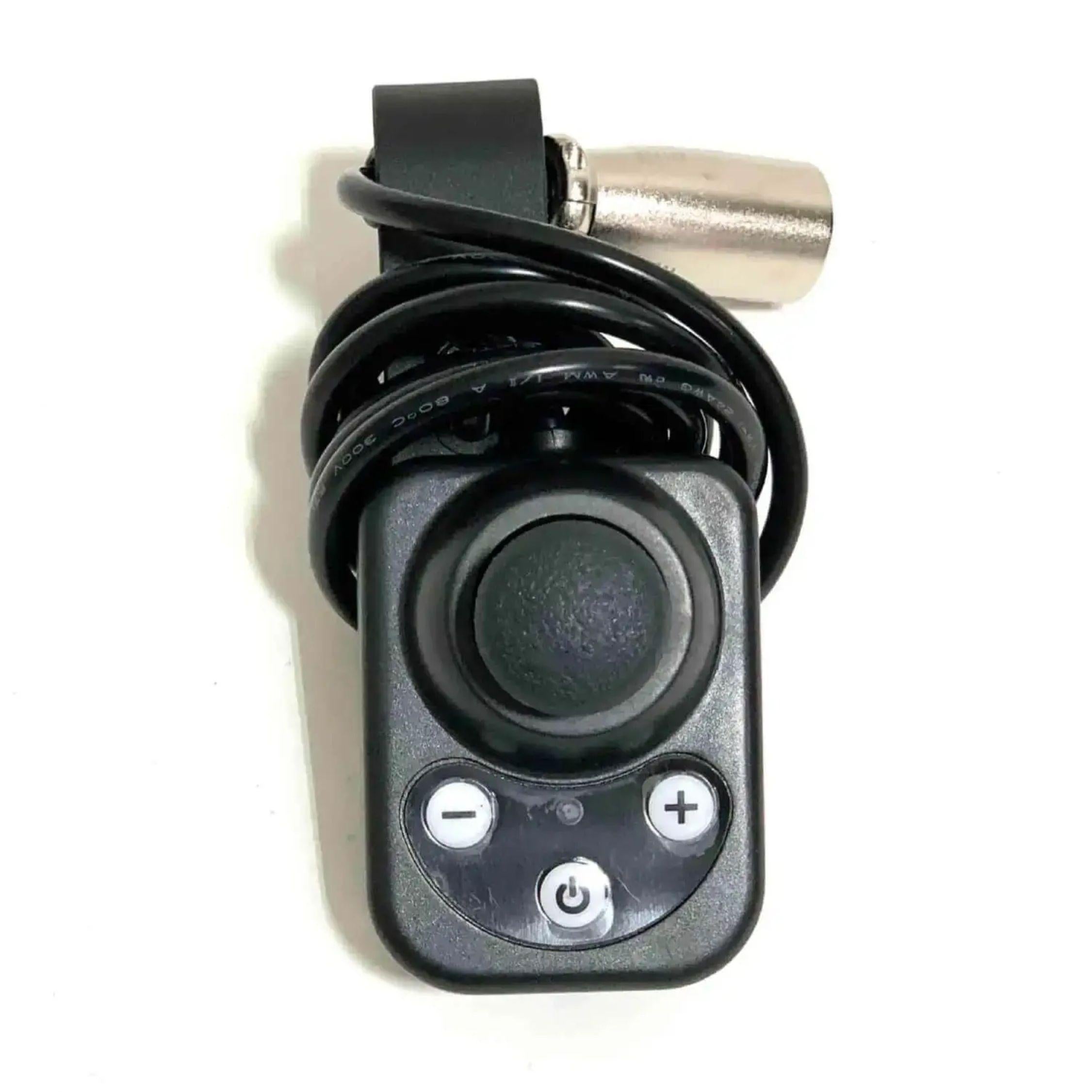

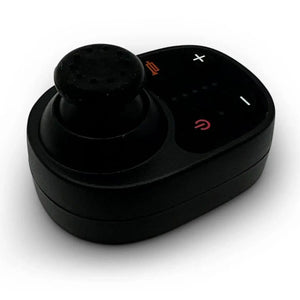

Remote Controller
Functionality: Move chair, control speed, sound horn, recline chair* (*if applicable)

Range: Up to 30 feet

Accessories

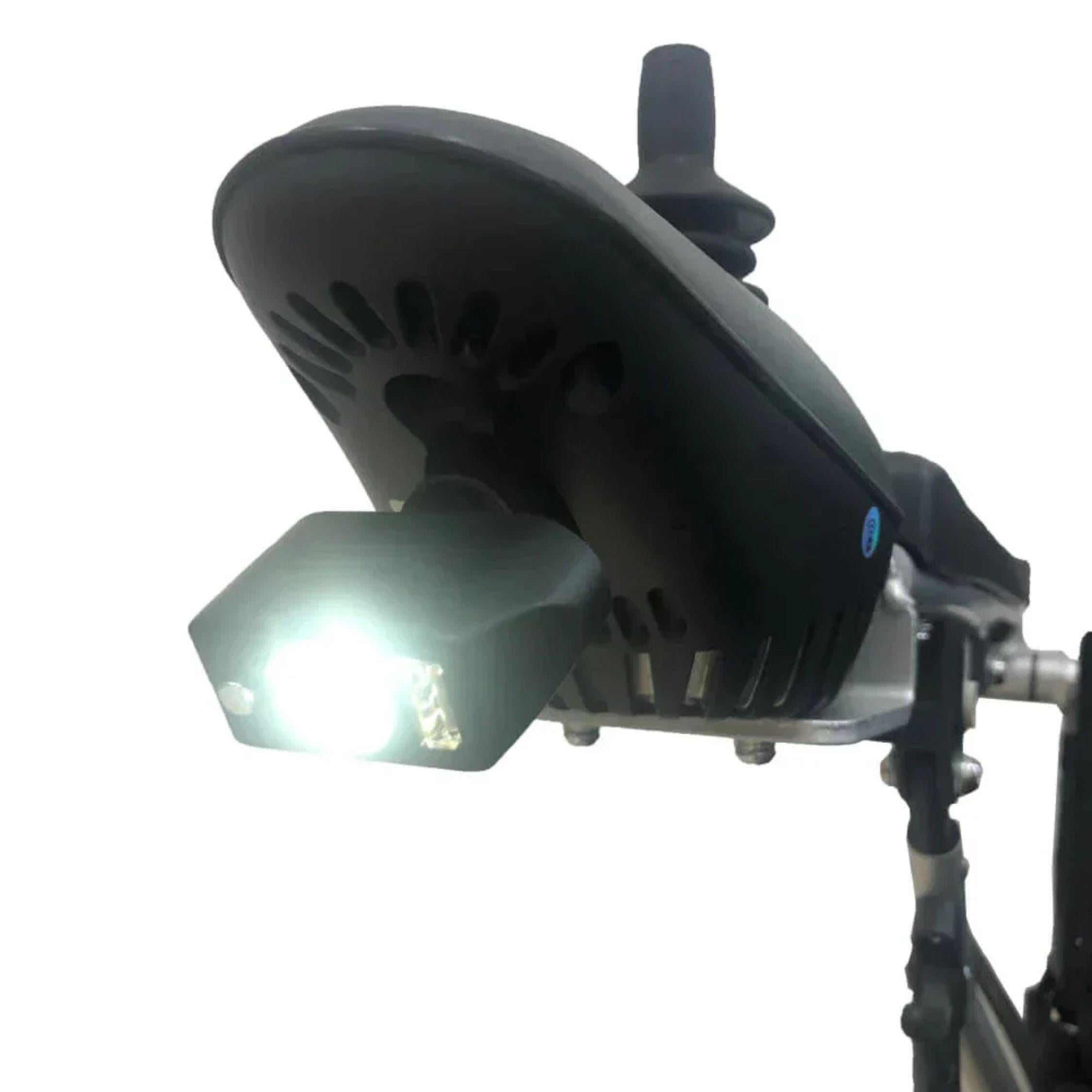

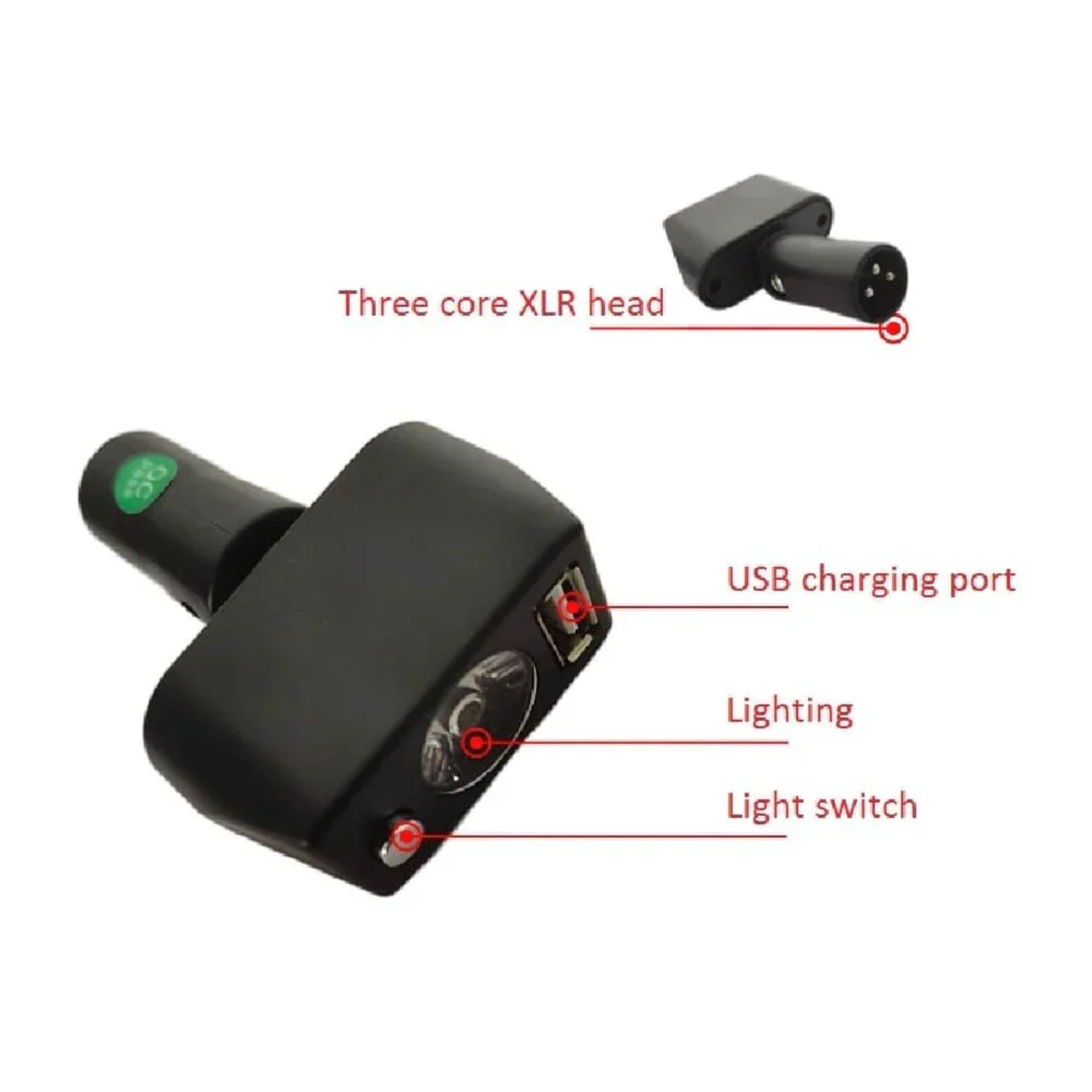

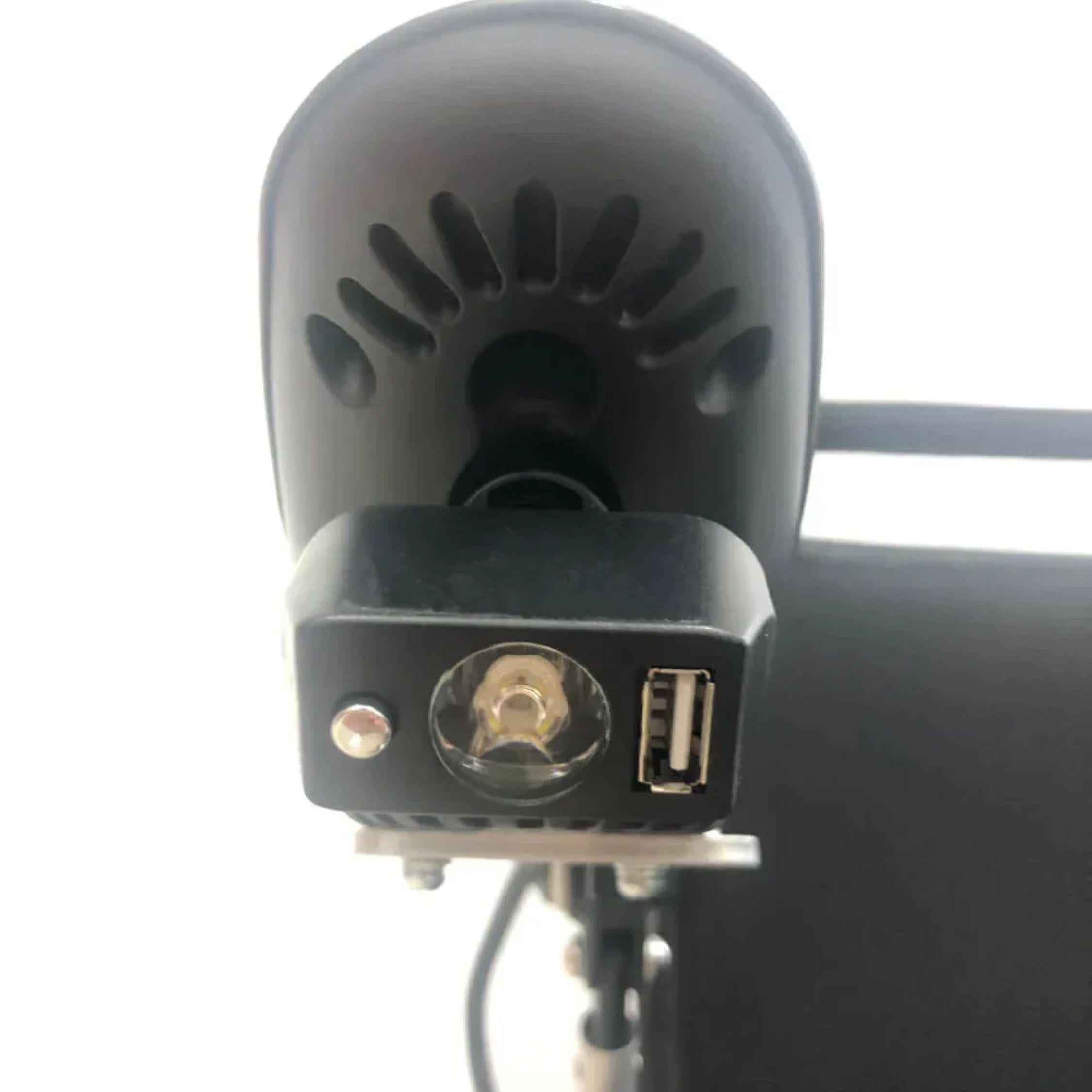

Optional: Headlight w/ USB charger, phone holder, cup holder, caregiver controller, canopy

**Accessories are totally your discretion and as desired basis. However there remain a few absolute essentials and Im sure our virtual AI assistant and quizzes will help you.

If you need a quick answer the virtual concierge is there to help but for 100% of the time, an SME is always available at your perusal.

For Absolute Essential like replacement parts contact us directly, with brisk speed we are here to help!

Speed
Top Speed: 4 mph

Speed Selections: Seven levels (15%, 30%, 45%, 60%, 75%, 90%, 100%)

Seating Area Width
Options:

Standard: 17.5" wide seat

IQ-9000 Plus: 20" wide seat

Cushion Width: Standard 16", Plus 18"

Frame

Material: Aircraft-grade aluminum alloy for durability and corrosion resistance

Weight of the Chair
IQ-9000: 49 lbs (without battery), 7.5AH battery adds 3.5 lbs

IQ-9000 Plus: 55 lbs (without battery), auto reclining adds 3 lbs

Loading Weight
Non-Reclining: Maximum 330 lbs

Auto Reclining: Maximum 310 lbs

Wiring/Electronics
Weather Resistance: Resistant to light rain and winds, not waterproof

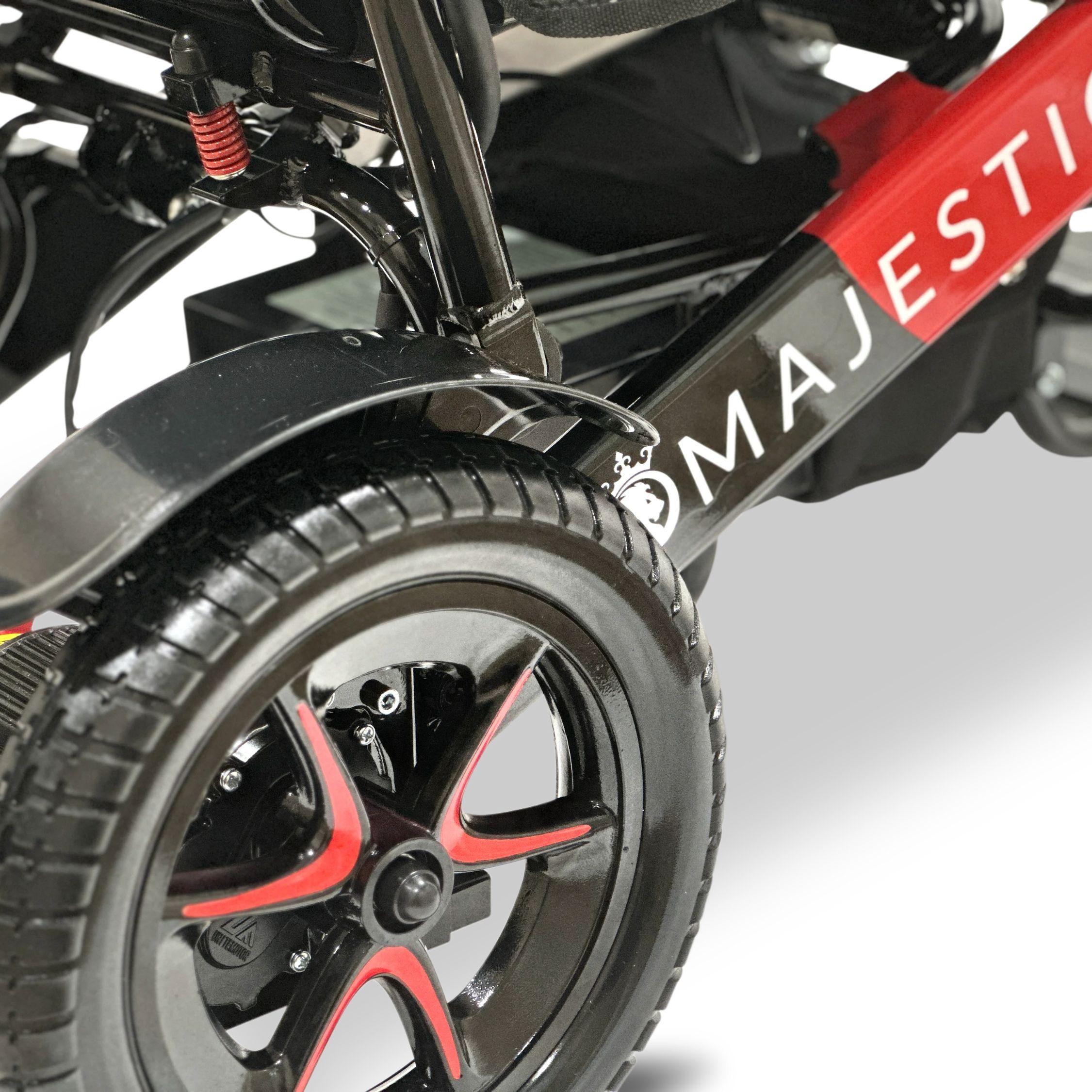

Tires
Type: Pneumatic tires

Rear Tires: 12"

Front Tires: 8" solid

Solid tires available upon request

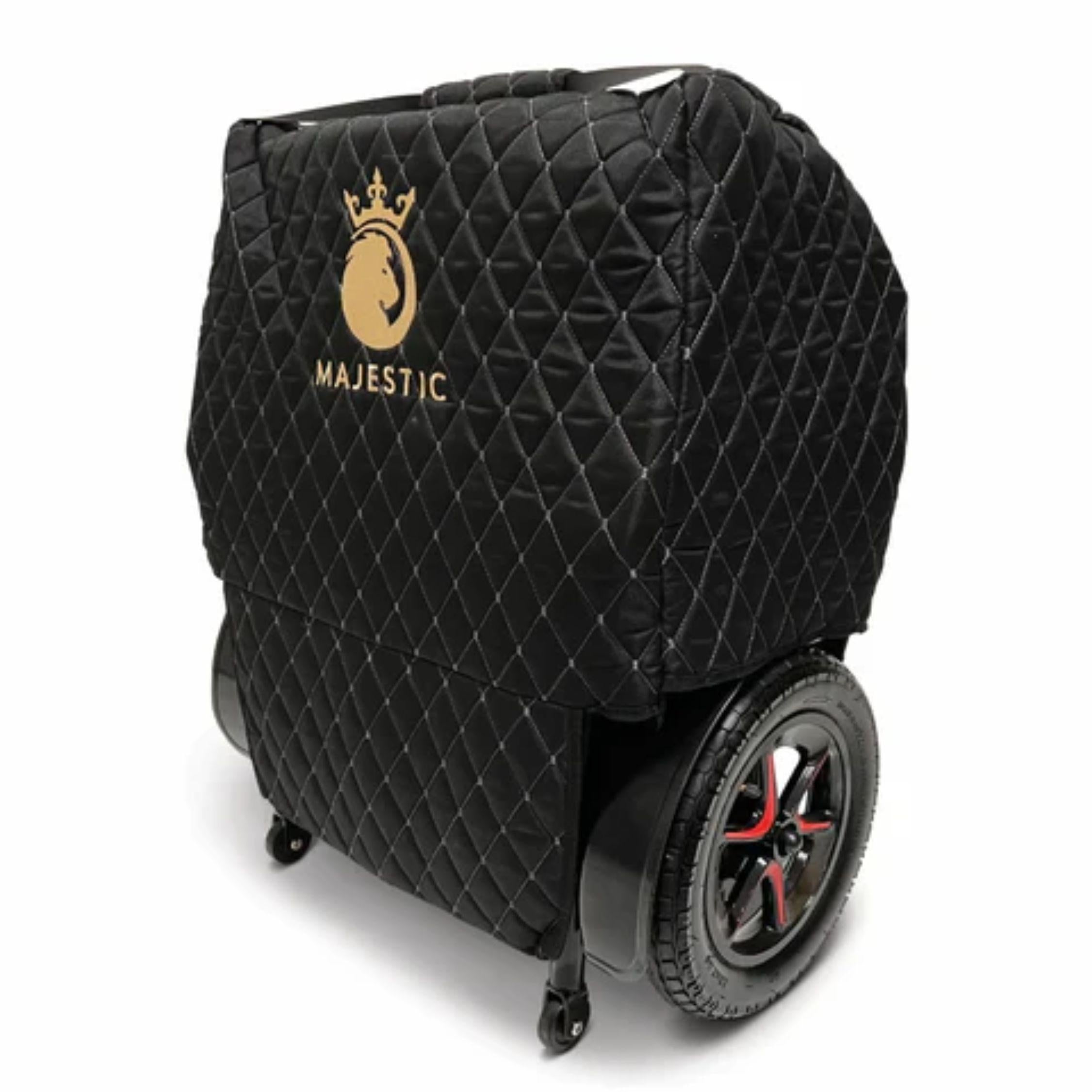

Travel Bag
Material: High-quality canvas

Purpose: Protects wheelchair during travel or storage

More Info: Accessories Check out the full range of the Majestic IQ series

Accessories that match or go with the highly customized Textile and other options you select.

Trust us, you'll be thrilled!

Headrest
Availability: The reclining model includes a headrest; the non-reclining does not but can be purchased separately

FDA Approved
Certification: FDA-approved, UL tested

Warranty
Frame: 3-year warranty

Motor: 3-year warranty

Battery: 1-year warranty

Electronics: 1-year warranty

Optional Warranty: ComfyGO Care for up to 2 years, ComfyGO Care+ for up to 3 years (purchase within 90 days)

What's in the Box
Contents: IQ-9000 wheelchair, lithium-ion battery, joystick (controller), remote controller, tool set, battery charger, anti-tip bars, user manual

Maintenance
Frequency: Cleaning, inspecting, and tightening of bolts and nuts every month.

Battery Care: Correct charging to extend the battery life

Anti-Tip Bars
Feature: Anti-tip bars with adjustable features promoting stability and safety on uneven terrain or inclines

TECHNICAL SPECIFICATIONS FROM THE MANUFACTURER: COMFYGO Mobility:

Battery and Charger

• The MAJESTIC IQ-9000 comes equipped with two standard 7.5AH lithium-ion batteries featuring a quick-release function, making them easily removable for travel or charging purposes.

• These batteries are airline and cruise approved, allowing for seamless travel experiences.

• The charging time for each battery is 6 to 8 hours.

• The IQ-9000 battery can be charged with a regular home outlet.

• Designed for user convenience, the batteries can work simultaneously and be charged either while installed in the wheelchair or independently, ensuring uninterrupted mobility and ease of use.

• The charging details for each battery are AC 100 – 240 Volt, 50 Hertz, at 1.5 – 5 amperes.

• The IQ-9000 comes with a standard 24V 2A charger in the box. For quicker charging times, we recommend the 24V 3A charger. The 24V 3A charger is sold separately.

Range

• Two 24V 7.5AH batteries provide an impressive driving range of up to 19 miles.

• However, it is important to note that driving habits, temperature, weather, loading weight, road conditions, and other factors may affect the overall range.

Motors

• The lightweight IQ-9000 travel chair is equipped with two 250W brushless silent motors. Each motor operates independently, delivering a combined motor power of 500W.

• With a motor torque of 1.1Nm, these motors have the capability to climb inclines up to 10 degrees.

Intelligent Electromagnetic Brakes

• Enjoy a safe and smooth ride with our electric wheelchair featuring intelligent electromagnetic brakes built into the motors.

• Intelligent Electromagnetic Brakes provide several benefits for wheelchairs, including improved safety, smoother braking, and reduced wear and tear on the wheelchair's components. Unlike traditional braking systems, electromagnetic brakes are highly responsive and can be controlled with precision, allowing for a safer and more comfortable ride. They also require less maintenance and have a longer lifespan compared to other braking systems.

• Additionally, electromagnetic brakes can help prevent the wheelchair from rolling away when parked on a slope or incline, providing greater peace of mind for the user.

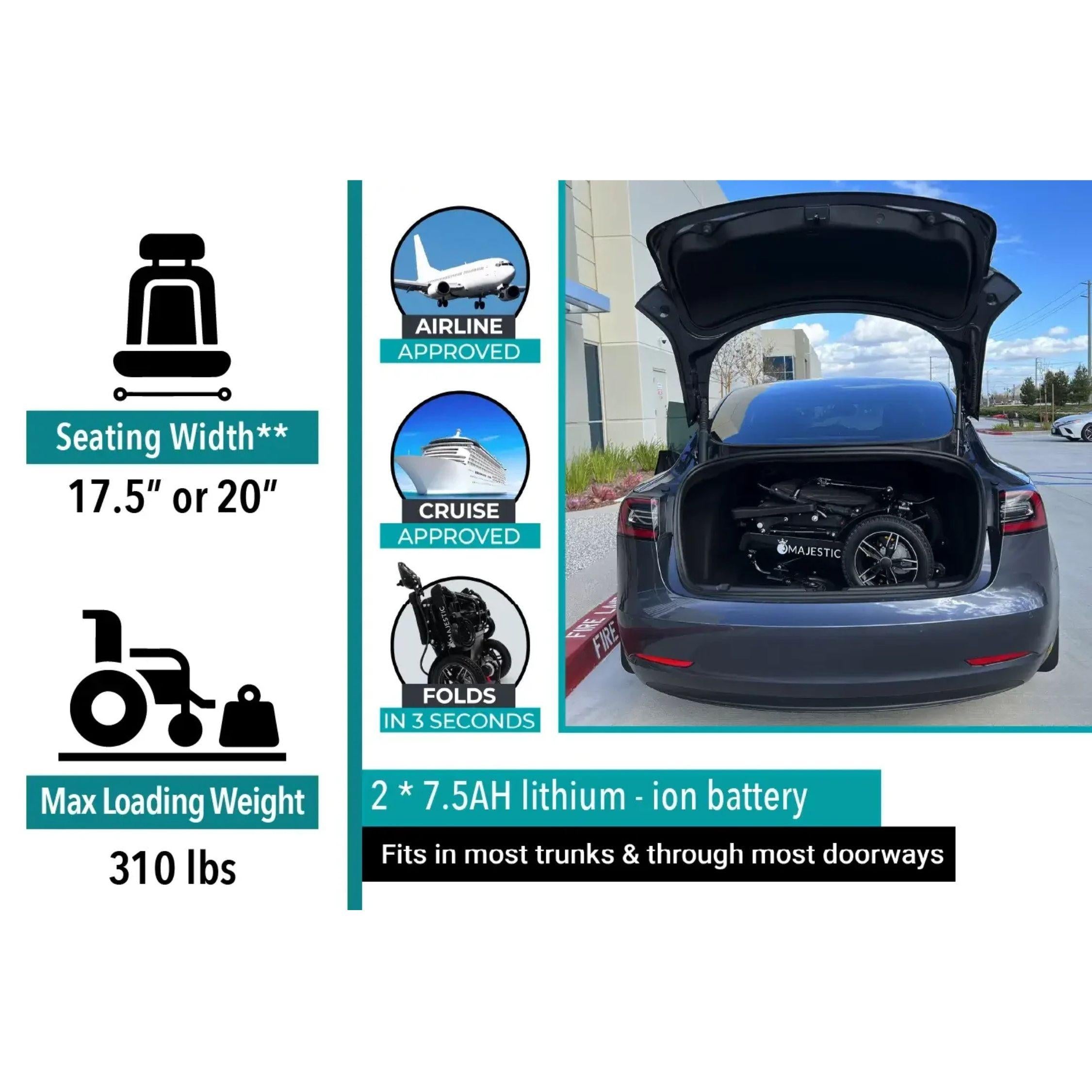

Travel Friendly

• The IQ-9000 is a lightweight foldable travel wheelchair. The 7.5AH (180WH) lithium-ion battery is travel approved by most major airlines and cruise lines. Before travelling by airline or cruise, please contact the airline or cruise line to confirm their travel battery regulations.

Reclining

• The IQ-9000 is available with an optional auto reclining feature. At its full upright position, there is a 10° angle on the backrest. By using the joystick controller or remote control, the backrest will recline up to 55° from the upright position.

• The reclining feature of the IQ-9000 provides additional comfort to the user and should only be used when the wheelchair is stationary. Do not use the recline feature while the chair is in motion as this could lead to tipping and severe injuries.

Controller (Joystick)

• This state-of-the-art wheelchair features a digital joystick controller with an LCD display for effortless navigation, alongside automatic reclining capabilities for maximum comfort during your journey. The quick-release function on the controller always ensures seamless operation.

• The controller contains the power on/off button, the speed selection buttons, the horn button, the battery level display, and the 360-degree joystick controller. If your IQ-9000 supports the auto reclining feature, your controller will also include the recline and upright buttons.

Cushion & Backrest

• Experience added comfort and easy maintenance with the leather cushion and backrest of our electric wheelchair.

• The IQ-9000 lightweight electric wheelchair is designed for maximum comfort, featuring a memory foam cushion with cooling gel inserts. For additional comfort and easy maintenance, you can also choose to add a leather cushion and backrest, which are easy to clean.

Remote Controller

• The IQ-9000 comes with a remote controller. The remote control allows you to maneuver the chair, adjust the speed, honk the horn, and recline the chair (if applicable). The remote control works at distances up 30 feet.

Accessories

• The IQ-9000 has optional accessories available including a headlight with USB charger, phone holder, cup holder, caregiver controller, and a canopy. Please click here https://www.comfygomobility.com/collections/accessories for more information on accessories.

Speed

• The IQ-9000 has seven speed selections and a limited top speed of 4 mph. The seven speed selections will deliver 15%, 30%, 45%, 60%, 75%, 90% or 100% of the maximum speed with speed one being 15% of maximum speed and speed five being 100% of maximum speed.

Seating Area Width

• The IQ-9000 is available with two seating options: a 17.5" wide seat or a 20" wide seat, known as the IQ-9000 Plus. The seat width is measured at the broadest point between the bars supporting the armrests.

• The IQ-9000 offers unrivaled comfort through its memory foam gel inserts and silicone cushion technology, featuring a 16" cushion width. The IQ-9000 Plus, on the other hand, comes with an even more spacious 18" cushion width.

Frame

• Experience maximum durability and strength with the IQ-9000 series of electric wheelchair, which features an aircraft-grade aluminum alloy frame.

• This high-quality material offers superior toughness and corrosion resistance, ensuring that your electric wheelchair can withstand the rigors of daily use and provide long-lasting performance.

Weight of the Chair

• The IQ-9000 is a foldable chair weighing just 49 lbs. without the battery. Each 7.5AH battery adds an additional 3.5 lbs.

• The IQ-9000 Plus weighs 55 lbs. without the battery. The automatic reclining feature contributes an extra 3 lbs. to the weight of each chair.

Loading Weight

• The non-reclining IQ-9000 and IQ-9000 Plus supports a maximum weight of 330 lbs.

• TThe IQ-9000 and IQ9000 Plus with the auto reclining feature support maximum weight of 310 lbs.

Wiring/Electronics

• The IQ-9000 wiring, connectors, processor, motors, and controller are weather resistant and are able to resist light rain and winds. It is important to understand that none of the electronics are weather or waterproof and should avoid heavy rains or submersion in water.

Tires

• The IQ-9000 features pneumatic tires, with 12" rear tires and 8" solid front tires. Solid tires may be available upon request. To inquire about solid rear tires, please contact us at 1 (844) 755-5055, email us at info@comfygomobility.com, or use the LET'S CHAT! feature on our website at https://www.comfygomobility.com

Travel Bag

• The high-quality canvas travel bag fits perfectly on the IQ-9000 and IQ-9000 Plus. This is the perfect accessory to protect your wheelchair when traveling or in storage. The travel bag can be added during checkout or on the accessory page, please click here https://www.comfygomobility.com/collections/accessories

Headrest

• The reclining IQ-9000 comes with a headrest. The non-reclining IQ-9000 does not come with a headrest, but it can be purchased separately. Please check: https://www.comfygomobility.com/collections/accessories

FDA Approved

• The IQ-9000 FDA approved, and UL tested.

Warranty

• The IQ-9000 comes with a standard 3-year frame, 1-year motor, 1-year battery, and 1-year electronic parts warranty.

• An optional ComfyGO Care warranty can be purchased to provide up to 2 years of coverage for batteries and electronics. An optional ComfyGO Care+ warranty can be purchased to provide up to 3 years of coverage for batteries and electronics. ComfyGO Care and ComfyGO Care+ can be purchased within 90 days of your delivery date.

What is in the box?

• The IQ-9000 wheelchair comes with a lithium-ion battery, joystick (controller), remote controller, tool set, battery charger, anti-tip bars, and the user manual.

Maintenance

• The IQ-9000 does not require much maintenance. Monthly cleaning, inspecting, and tightening of bolts and nuts should keep your wheelchair in good working order. Proper charging of the lithium-ion battery will prolong your battery life.

Anti-Tip Bars

• For added stability and safety, the IQ-9000 wheelchair is equipped with adjustable anti-tip bars. These bars are designed to prevent the wheelchair from tipping over and provide extra support when navigating over uneven terrain or inclines. With this advanced feature, users can enjoy a more secure and worry-free ride, knowing that their electric wheelchair is equipped with additional safety measures.

FROM THE MANUFACTURER COMFYGO MOBILITY.

Can I turn my wheelchair on or off with the remote control?

The wheelchair must be powered on for the remote control to first pair and work with your chair.

Also watch the how to video below for more guidance with your joystick.

Will my wheelchair arrive fully assembled upon delivery?

Mostly assembled but some minor parts with easy installation are included. You may also opt for added service and extended care and coverage with ComfyGO Care plan.

Is my wheelchair suitable for travel on airplanes or cruise ships?

Absolutely! Everything about the Majestic lineage screams take me with you!

And so you should, because it's dual 7.5AH (180WH) lithium-ion battery is travel approved by most major airlines and cruise lines. Before travelling by airline or cruise, please contact the airline or cruise line to confirm their travel battery regulations.

Long battery life with an overnight charge 6-8 hours gets you upto or sometimes over 19 miles in range.

Can I operate my wheelchair safely with the backrest reclined?

The wheelchair will still work if the backrest is reclined. However we advise to err on the side of caution and not over-recline, esp at maximum speed limit, for fear of tipping.

Using the Wheelchair in a way not advised, overriding safety and manual instructions can be fatal and in no way does Rivete Smart Suite or it's Partner Manufacturer, ComfyGO assume any liability or responsibility for negligent use herein.

This feature in the standard IQ9000 on this page can only maximally recline to 55 degrees with the joystick and/ RC. In the upright position, there is a reclination of 10 degrees from total upright position.

How do I charge the lithium-ion battery of my wheelchair?

The lithium-ion battery can be charged through the joystick controller or directly on the battery.

The charge time for an empty battery is 6-8 hours. If your battery has a partial charge, the charge time will be less. When the battery is fully charged, unplug the charger from the battery and unplug it from the power outlet. In the event your wheelchair has run out of battery and you have no way to charge it, yes your IQ series wheelchairs can function as a manual wheelchair.

You may push the wheelchair and treat it as a manual wheelchair.

Can I install my Controller on either side of my Wheelchair?

Yes. It comes with the controller set up on your right side but you can change it to the left as you please.

Does the arm-rest raise?

Yes the armrests on both sides can raise, making it easier for you to get in or out of the wheelchair. This also makes it easier to navigate at restaurants, and pull yourself closer to a table.

Can I silence the "Beeping" sound while my wheelchair is reversing?

Possible yes you can. Remove the beeping noise, press the (+) key on the controller until you reach the top speed then hold the button down until you see the amber light in the middle of the display.

Quickly press the horn button and the beeping will stop. Repeat these steps if you want the beeping sound back.

Is my Remote Controller Readily Paired with my Wheelchair?

Yes. The remote control comes paired with your chair. If your remote loses its pairing, please watch the video on the page, to establish connectivity.

To watch a video tutorial on how to pair your remote. If you are still having difficulties pairing your remote, please contact us immediately or as soon as you possibly can.

info@rivete.store or use our chat and or Virtual Concierge at your service!
